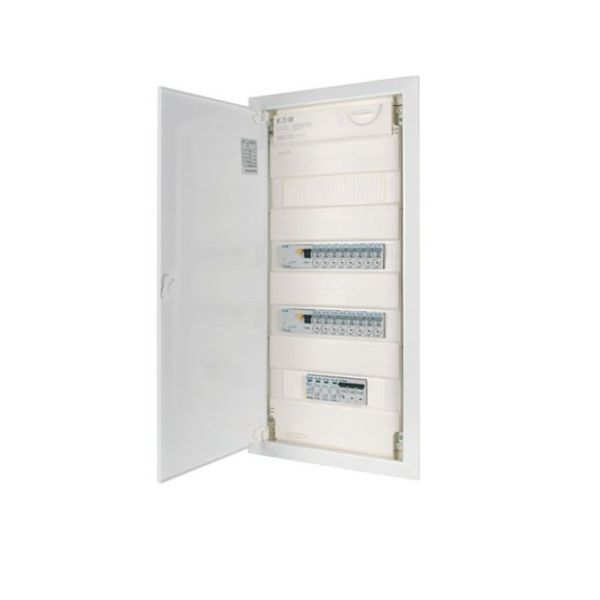

Assembled compact distribution board, 4-rows, flat sheet steel door
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
786,94 €
EAN: 9010238139107
MPN: 194711-A
Pakend: 1
Karp: 30
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | KLV-PW-48-1PXL-1SPD-2PFIM-16PLI Eaton xComfort KLV pre-wired distribution board |
| Bränd | EATON |
| Kategooriad |
Small Distribution Boards
|
| Päritoluriik | CZ |
| Harmoneeritud süsteemi kood | 8538 9099 00 |
| Paigaldusviis | Õõnessein |
| Kaitse | Mini- / rikkevoolu kaitselüliti |
| Kaitseaste (IP) | IP30 |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010238139107 |
| Pakkimistase 2 | 9010238139206 |
Muud tehnilised andmed
| Laius | 359 mm |
| Kõrgus | 714 mm |
| Sügavus | 96.5 mm |
| Lukustatav | No |
| Pistikupesaga | No |
| Faaside arv | 3 |
| Laiendamine on võimalik | Yes |
| Läbipaistva kattega | No |
| Liigpingekaitse | Yes |
| Kere materjal | Plast |
| Laius mooduli arvudes | 12 |
| Sisestussügavus | 0 mm |
| Maanduse lekkevoolu kaitselüliteid | 2 |
| Maaühendusrikke lülitite arv 300 mA | 0 |
| Maaühendusrikke lülitite arv 30 mA | 2 |
| Otserühmade hulk | 0 |
| Rühmasid maa lekkelüliti vahel | 16 |
| Valgustirühmasid | 0 |
| Peaahelka lüliti pooluste arv | 3 |
| Kellaga trafoga | No |
| Pliidi rühm | Puudub |
| Võimsus-voolu rühmana kasutamiseks sobiv pliidi rühm | No |
| Rühmi kokku | 16 |
| Peaahela lüliti tunnusvool | 32 A |
| Sobib andmetele | No |
| Protection main switch | Yes |
| Protection incoming RCD | Yes |
| Protection high integrity | Yes |
| Protection split load | Yes |
| Protection dual RCD | Yes |
| Number of outgoing ways | 16 |
| Number of arc fault detection devices AFDD | 0 |
| Type of over voltage protection device | Tüüp 2 |
| With meter | No |
Kirjeldus
Assembled and pre-wired xComfort KLV small distributor tested according to EN 61439-3 for use in residential buildings and commercial buildings; for cavity-wall assembly and flush mounting; with 1x HKL connection terminal; 1x PXL 3p. Miniature circuit breaker 40A; 1x SPCT2 surge protection; 2x PFIM Fi-circuit breakers type F; 16x PLI miniature circuit breakers 16A; universal plug-in terminal technology for all outgoing circuits; distributor with finger-safe N/PE combination plug-in terminal with a protection rating of IP2X and with combined snap-fit and screw-fit technology; blanking strips included; protection class II; IP30; IK05 ; sealable front cover; door espagnolette that can optionally be replaced with a security lock; spirit level; 3D plaster compensation for quick and clean assembly; including wall anchors for flush mounting; standards for empty housing: EN 62208 and DIN 43871; standards for switchgear combination: EN 61439-3; the housing is suitable for cavity wall assembly. For cavity wall assembly, the cavity wall anchor type: HWS-KLV, item:178941 must be ordered separately, this is not included in the scope of delivery; for the comprehensive range of accessories and spare parts, see Eaton catalog xComfort small distributor CA015005DE.
