Kaedra - interface enclosure - 4 openings
Ainult telli
Hind (ilma KM-ta):
48,23 €
EAN: 3303430139942
MPN: 13994
Pakend: 1
Kaubaalus: 64
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | Kaedra - interface enclosure - 4 openings |
| Bränd | Schneider Electric |
| Kategooriad |
Small Distribution Boards
|
| Päritoluriik | IT |
| Paigaldusviis | Pinnapealne |
| Kere materjal | Plast |
| Kaitseaste (IP) | IP65 |
| Katte kuju | Suletud |
Pakendamise üksikasjad
| Pakkimistase 1 | 3303430139942 |
| Pakkimistase 2 | 3303430139942 |
Muud tehnilised andmed
| Värvus | Hall |
| Laius | 138 mm |
| Kõrgus | 610 mm |
| Sügavus | 160 mm |
| RAL-number | 7035 |
| Koos montaažiplaadiga | No |
| Sisseehitussügavus | 0 mm |
| Ridade arv | 0 |
| Kõrgus | 0 mm |
| Katte liik | Uks |
| Laius | 0 mm |
| EMC-variant | No |
| Laiendamine on võimalik | Yes |
| Sisemine sügavus | 88 mm |
| DIN-liist | No |
| Laius mooduli arvudes | 0 |
| Sulgemisviis | Muul viisil |
| Läbipaistev kate/uks | No |
| Lukuga | Yes |
Allalaadimised
Kirjeldus

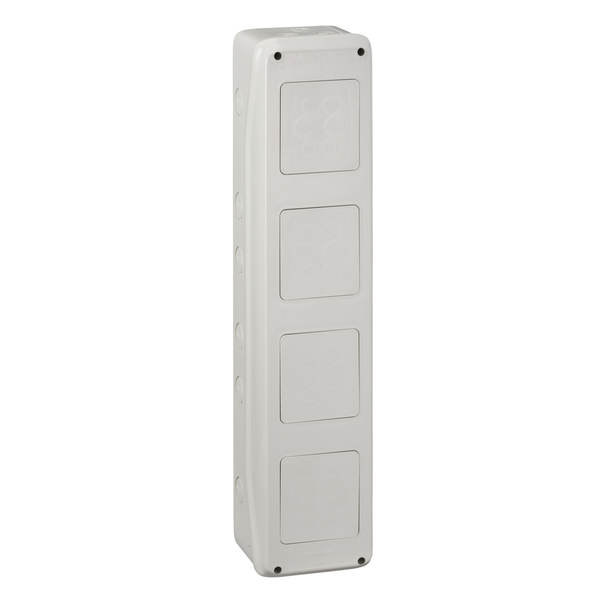

This Kaedra weatherproof versatile enclosure comes with 4 openings. It allows the mounting of power sockets. The dimensions of the box are (W) 138mm x (H) 610mm x (D) 160mm. The dimensions of the openings are 65mm x 85mm. The rated current is 63A, according to EN 60439-1 the complete insulation is Class 2. The degree of protection is IP65 and IK09. The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 60°C. Empty, this enclosure is compliant with IEC 60670. Equipped switchboards, this enclosure is compliant with IEC 60493-3. This enclosure is dedicated to indoor or outdoor waterproof installation. It comes with protective caps, fixing screws Class 2 and with marking strips and label guards.
