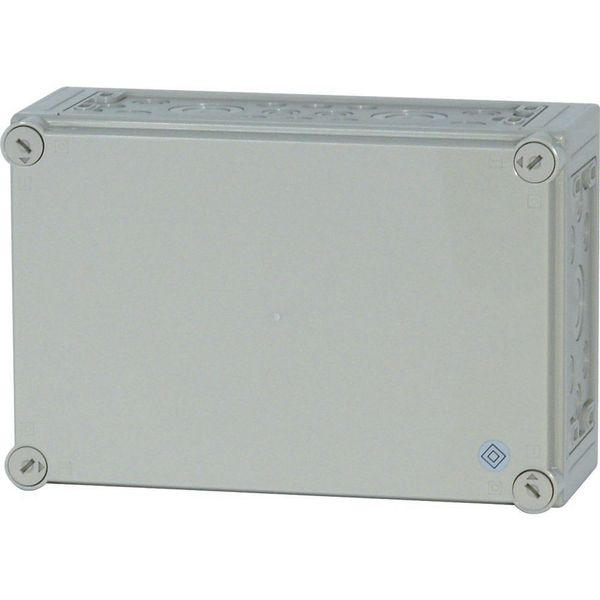

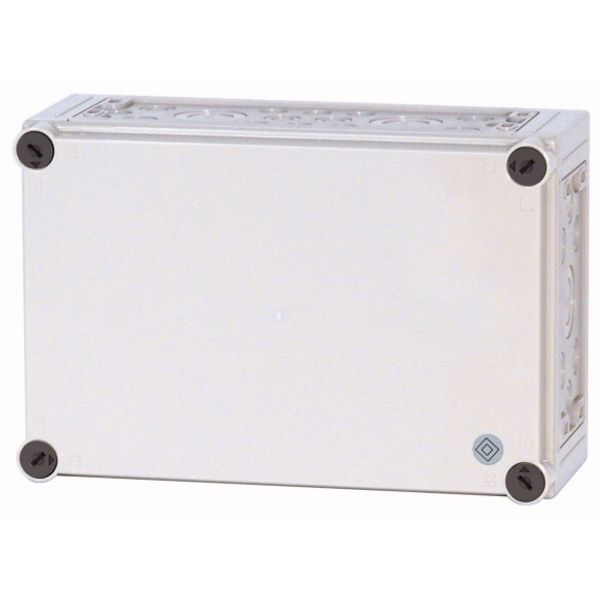

Insulated enclosure, +knockouts, RAL7035, HxWxD=250x375x150mm
Ainult telli
Hind (ilma KM-ta):
45,10 €
EAN: 9010238058293
MPN: 194611
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
1-4 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | CI43E-125-RAL7035 Insulated enclosure, +knockouts, RAL7035, HxWxD=250x375x150mm |
| Bränd | EATON |
| Kategooriad |
Cabinet Enclosures
|
| Päritoluriik* | FI |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 8547 2000 00 |
| Ahela terviklikkus | Puudub |
| Löögikindlus | IK10 |
| Kaitseaste (IP) | Muul viisil |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010238058293 |
Muud tehnilised andmed
| Paigaldusviis | Pinnapealne |
| Kaitseklass | II |
| Värvus | Hall |
| Laius | 250 mm |
| Kõrgus | 375 mm |
| Sügavus | 150 mm |
| RAL-number | 7035 |
| Koos montaažiplaadiga | No |
| Pinnatöötlus | Töötlemata |
| Sisseehitussügavus | 125 mm |
| Ridade arv | 0 |
| Katte liik | Puudub |
| Paigaldustoru sisendite arv | 76 |
| Laiendamine on võimalik | Yes |
| Sisemine sügavus | 125 mm |
| Kere materjal | Plast |
| Laius mooduli arvudes | 15 |
| Sobib väliskasutuseks | Yes |
| Moodulite arv | 1 |
| Ukse liik | Puudub |
| Läbipaistev kate/uks | No |
| Lukuga | No |
| Sobib piksekaitseks | Yes |
| Tunnusvool (In) | 1600 A |
| Kapi ümbrise paksus | 6 mm |
| Ukse või katteplaadi paksus | 6 mm |
| Katte kuju | Suletud |
| Ääreplaatide avade arv | 4 |
| Kaitseaste (NEMA) | Muul viisil |
| Cover with overpressure release | Yes |
Kirjeldus
Individual basic enclosure, material characteristic polycarbonate, impact-resistant, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, with metric cable entry knockouts in all side walls, cable entries top and bottom, each=2xM50/32 and 6xM25/16 and 8xM20, each side=1xM50/32 and 6xM25/16, fixing straps for wall fixing, sealable cover fasteners, full-area knockouts in the sides can be converted to a distribution board enclosure by knocking out the side walls., RAL 7035 grey (base), RAL 7035 grey (cover), mounting depth with mounting plate=125mm, cover type: non-transparent , lower section type: knockout cover is optionally fitted by user with cylinder lock DVZ...-CI.
