HVI Conductor D 20mm Cu w. support. tube L 3200mm a. air-term. rod L 1
Ainult telli
Hind (ilma KM-ta):
1 756,99 €
EAN: 4013364260511
MPN: 819326
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
2 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | HVI Conductor D 20mm Cu w. support. tube L 3200mm a. air-term. rod L 1 |
| Bränd | Dehn |
| Kategooriad |
Lightning Protection Components
|
| Päritoluriik* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 8538 9099 00 |
| Juhi ristlõige | 19 mm² |
| Juhi läbimõõt | 5 mm |
| Juhi materjal | Vask |
| Juhi kategooria | Klass 2 = kiuline |
| Mantli materjal | XLPE (VPE) |
Pakendamise üksikasjad
| Pakkimistase 1 | 4013364260511, 4013364260511 |
Muud tehnilised andmed
| Värvus | Must |
| Pinnatöötlus | Töötlemata |
| Mass/kaal | 48 kg/100 m |
| Sobib kasutamiseks plahvatusohtlikus EX-keskkonnas | Yes |
| Kiudude arv | 7 |
| Kõrgepingeisolatsiooniga mudel | Yes |
| Isolatsiooni materjal | PE |
| Suurim ekvivalentne eralduskaugus (õhus) | 0.75 m |
| Suurim ekvivalentne eralduskaugus (tahkes ehitusmaterjalis) | 1.5 m |
| Outer diameter incl. sheat/cover | 20 mm |
| Suurim tõmbekoormus | 950 N |
Allalaadimised
Kirjeldus

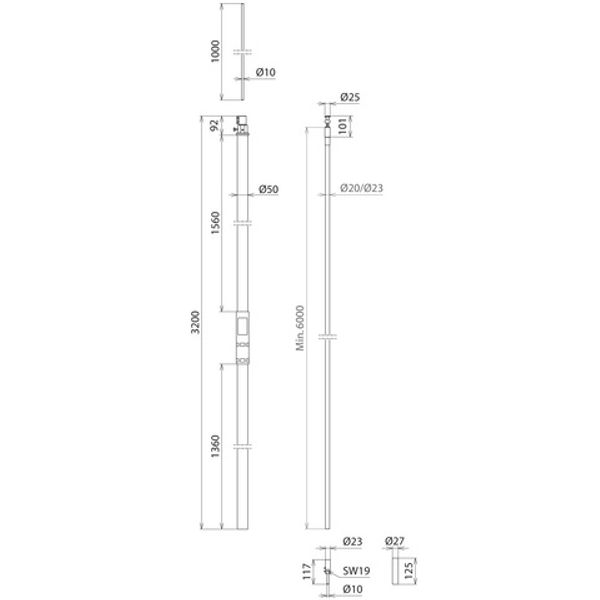

HVI Conductor (high-voltage-resistant, insulated down conductor) in a supporting tube, to maintain the separation distance from electrically conductive parts according to IEC 62305-3, in order to prevent dangerous flashover between external lightning protection system components and indoor conductive parts (electrical installation, piping, etc.). In order to avoid creeping discharge, the HVI Conductor has a special outer sheath which makes it possible to discharge high lightning impulse voltages to a reference potential. HVI Conductor (black), with sealing end and EB spring element inside the supporting tube (length 3200 mm) with air-termination tip (D10 mm length 1000 mm) and an earth connection element. Equivalent separation distance s ≤ 075 cm (in air), s ≤ 150 cm (solid material).
