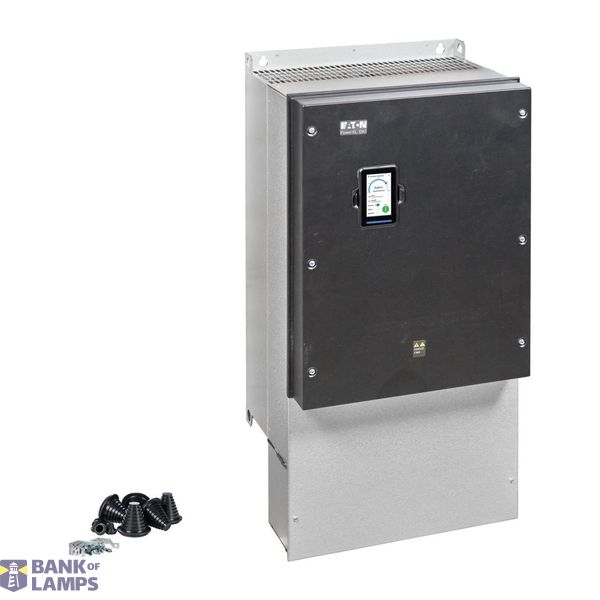

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 1

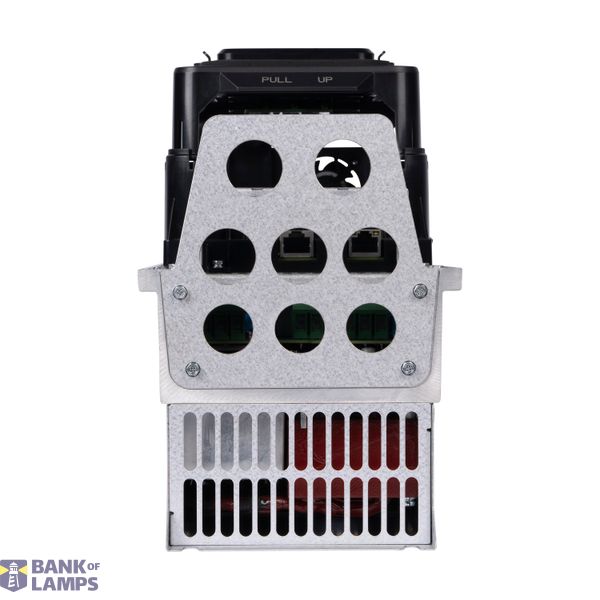

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 2

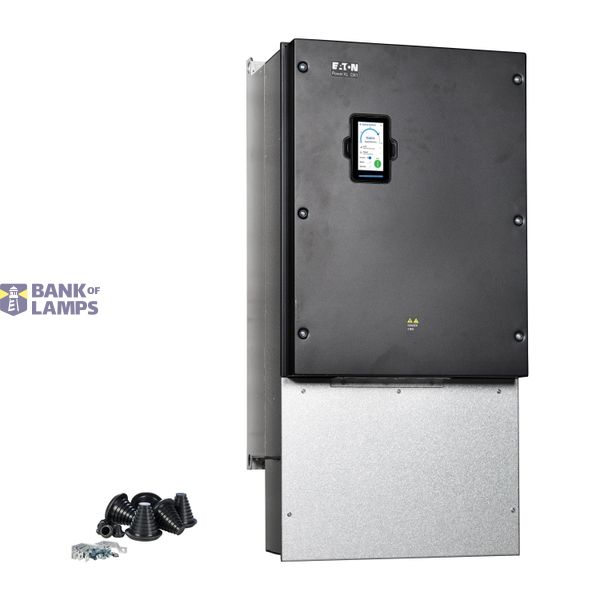

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 3
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 4
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 5

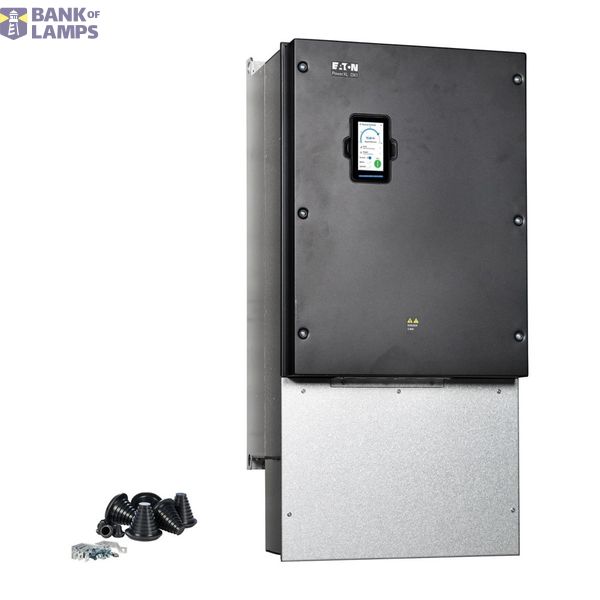

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 6

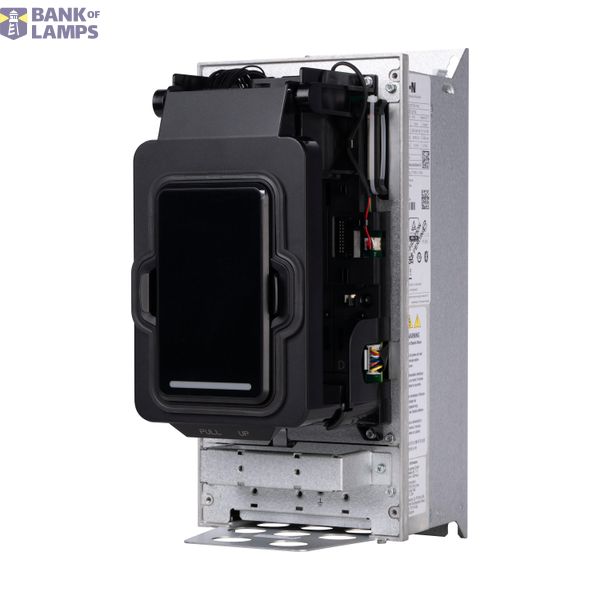

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 7

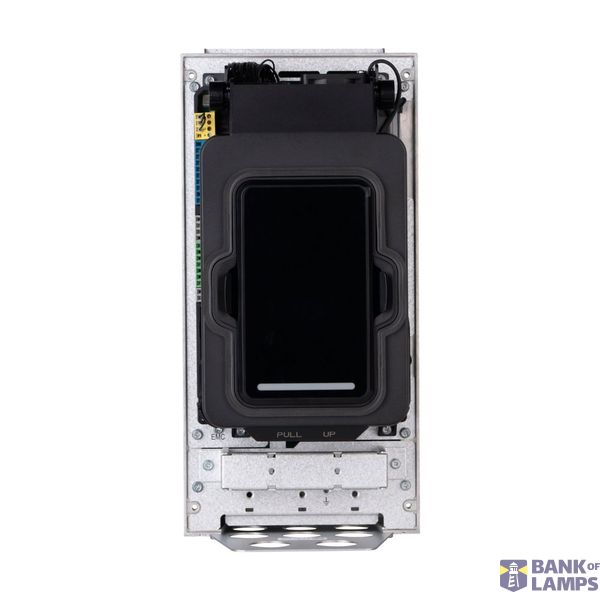

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 8

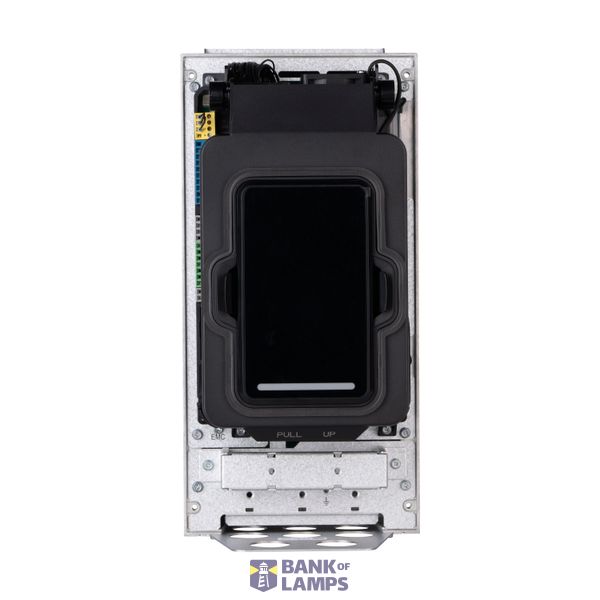

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 9
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 10

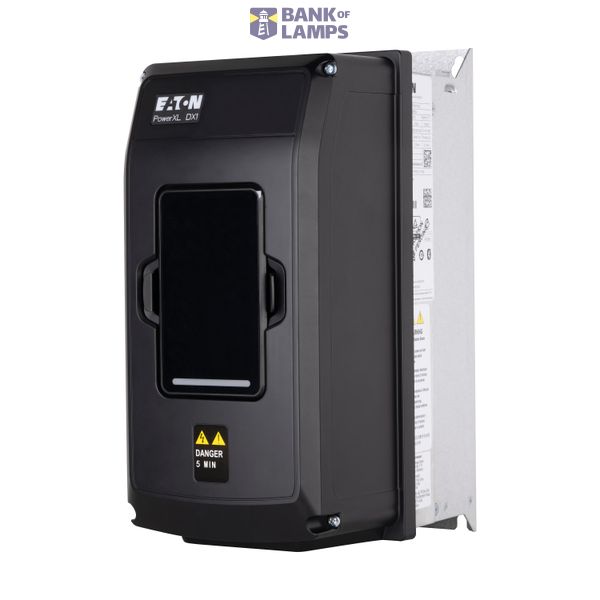

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 11

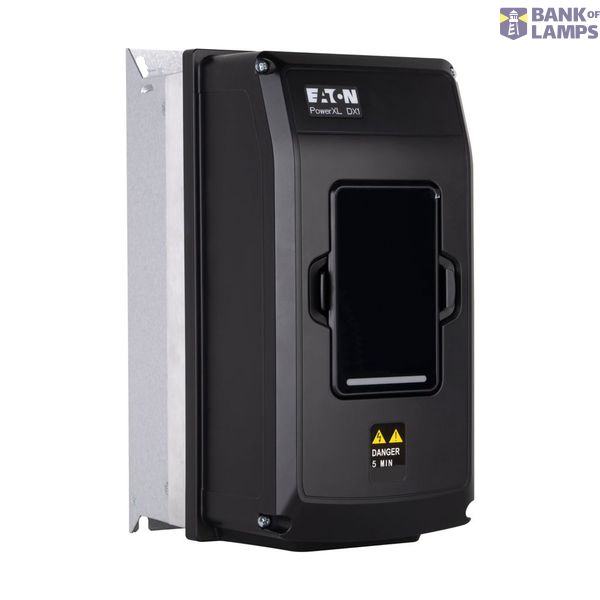

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 12
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 13
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 14

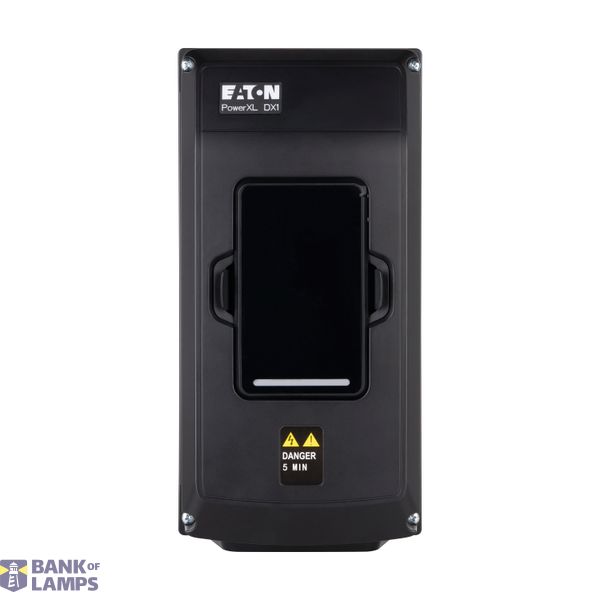

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 15
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 16

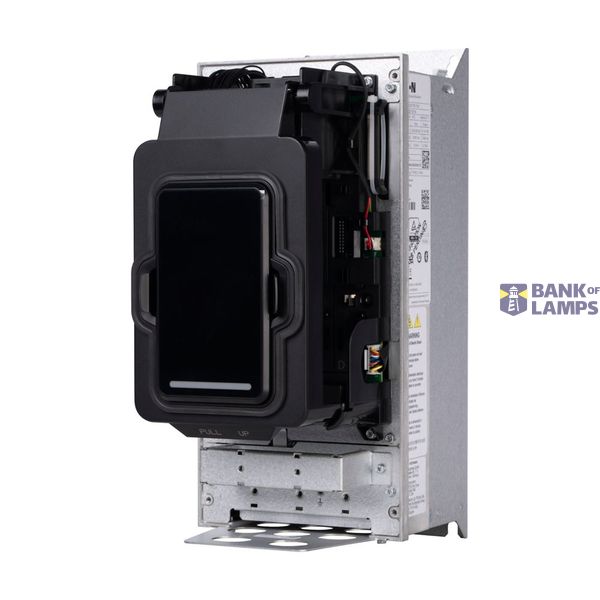

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 17

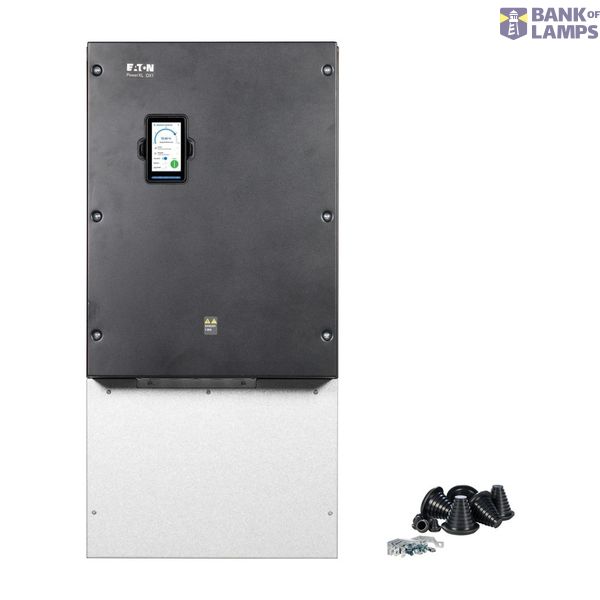

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 18
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 19

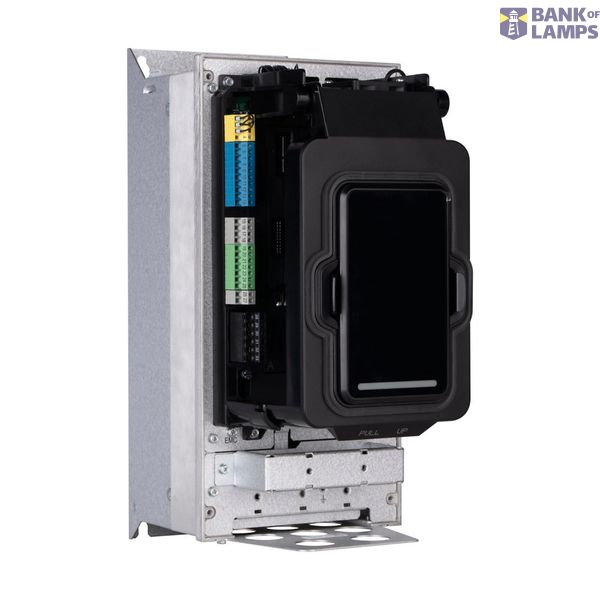

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 20
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 21

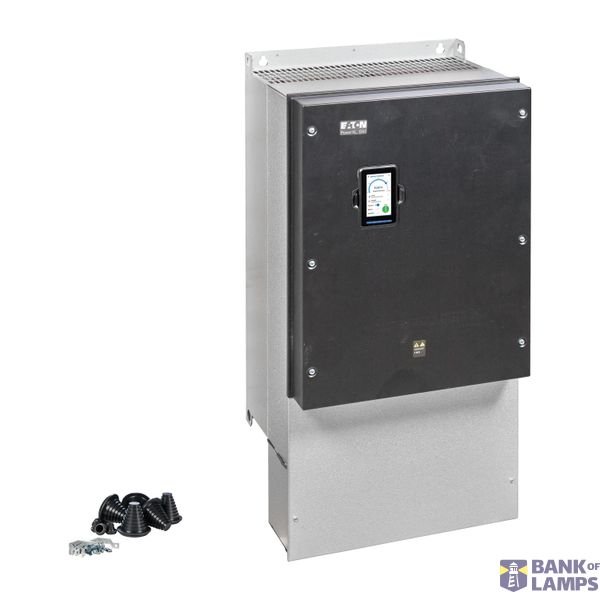

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 22
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 23

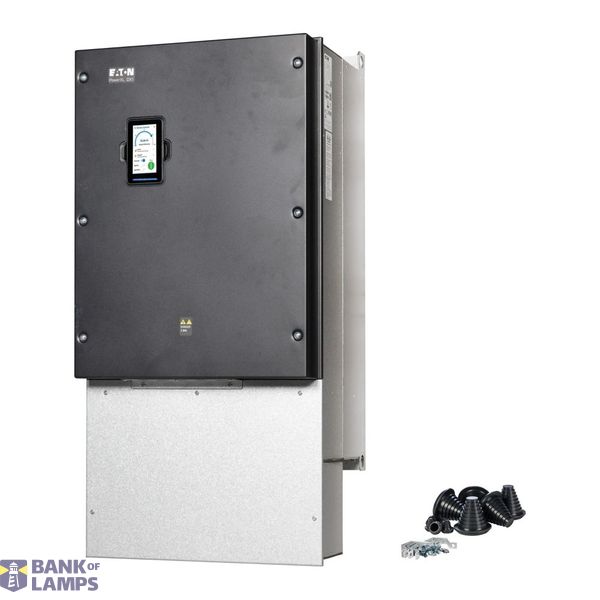

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW image 24
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 1
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 2
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 3
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 4
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 5
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 6
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 7
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 8
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 9
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 10
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 11
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 12
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 13
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 14
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 15
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 16
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 17
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 18
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 19
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 20
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 21
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 22
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 23
High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW thumbnail 24
EATON

High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW

Ainult telli
EAN: 0786689826772
MPN: DX1-34245FN-T54CE
Pakend: 1
No pricing modes available.

Tehniline teave

Toote seisukord Uus
Tootja nimi High Performance Frequency inverter, Three-phase, 500 V, 310 A, 132 kW
Bränd EATON
Kategooriad Sagedusmuundurid ≤ 1 kV
Päritoluriik* DO
* Tegelik päritoluriik võib sõltuvalt tarn partiist erineda. Konkreetse päritoluriigi kinnitamiseks võtke palun ühendust oma kontohalduriga.
ETIM EC001857
Toitepinge 380-500 V
Võrgusagedus 50/60 Hz
Faaside arv sisendis 3
Suhteline sümmeetriline võrgu voolutolerants 10 %
Suhteline sümmeetriline võrgu sagedustolerants 10 %

Pakendamise üksikasjad

Pakkimistase 1 0786689826772

Muud tehnilised andmed

Laius 486 mm
Kõrgus 1035 mm
Sügavus 399.5 mm
Juhtseadmega Yes
Digitaalsisendite arv 6
Digitaalväljundite arv 1
Analoogsisendite arv 2
Analoogväljundite arv 2
Tugiprotokoll LON No
Riistvaraliideste tööstuslik Ethernet arv 1
Riistvaraliideste RS-232 arv 0
Riistvaraliideste RS-422 arv 0
Riistvaraliideste RS-485 arv 1
Riistvara jadaliideste TTY arv 0
Riistvaraliideste USB arv 0
Riistvara rööpliideste arv 0
Muude riistvaraliideste arv 1
Optilise liidesega No
Tugiprotokoll TCP/IP No
Tugiprotokoll ASI No
Tugiprotokoll PROFIBUS No
Tugiprotokoll CAN No
Tugiprotokoll INTERBUS No
Tugiprotokoll KNX No
Tugiprotokoll MODBUS No
Tugiprotokoll Data-Highway No
Tugiprotokoll DeviceNet No
Tugiprotokoll SUCONET No
Toetab muid andmesideprotokolle Yes
Kaitseaste (IP) IP54
Arvuti PC liidesega Yes
Toetab andmesideprotokolli SERCOS No
Toetab andmesideprotokolli INTERBUS-Safety No
4-se jaotustalitluse tugi No
Riistvaraliideste PROFINET arv 2
Muunduri tüüp Pingemuundur
Faaside arv väljundis 3
Sisseehitatud pidurdustakisti No
Lubatud on tööstusoludes kasutamine Yes
Lubatud kasutamine kodumajapidamistingimustes Yes
Maksimaalne väljund sagedus 400 Hz
Maksimaalne väljund lineaarkoormusel nimiväljundpingel 132 kW
Suurim võimsus ruutkoormusel tunnusväljundpinge korral 160 kW
Toetab andmesideprotokolli AS-Interface Safety at Work No
Toetab andmesideprotokolli DeviceNet Safety No
Toetab andmesideprotokolli EtherNet/IP No
Toetab andmesideprotokolli Foundation Fieldbus No
Toetab andmesideprotokolli PROFINET CBA No
Toetab andmesideprotokolli PROFINET IO No
Toetab andmesideprotokolli PROFIsafe No
Toetab andmesideprotokolli SafetyBUS p No
Suurim väljundpinge 500 V
Nimiväljundvool I2N 310 A
BACnet'i tugiprotokoll No
Kaitseaste (NEMA) 12

Allalaadimised

Kasutusjuhend Muu

Kirjeldus

High Performance Frequency inverter, Three-phase, Mains voltage - max: 500 V, Nominal output current I2N: 310 A, Output at linear load at rated output voltage - max: 132 kW, Output at quadratic load at rated output voltage - max: 160 kW, Fitted with: EMC Filter & DC-Choke, Display: Touchscreen, Degree of Protection: IP54, NEMA 12, Frame size: FR6, Converter type: U converter, Supply frequency: 50/60 Hz
