FM sensors for KNX, FM sensors solo®, Touch sensor with 2/4gang with thermostat, studio white
Ainult telli
Hind (ilma KM-ta):
315,69 €
EAN: 4011395136027
MPN: 6134-0-0261
Pakend: 1
Karp: 10
Hinnanguline tarneaeg meie laos: 4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | FM sensors for KNX, FM sensors solo®, Touch sensor with 2/4gang with thermostat, studio white |
| Bränd | ABB |
| Kategooriad |
Siini-süsteemi seadmed (KNX & Modbus)
|
| Päritoluriik* | DE |
| * Tegelik päritoluriik võib sõltuvalt tarn partiist erineda. Konkreetse päritoluriigi kinnitamiseks võtke palun ühendust oma kontohalduriga. | |
| Harmoneeritud süsteemi kood | 9032 1020 00 |
| ETIM | EC001101 |
| Kooste ehitus | Juhtelement |
| Siinisüsteem KNX | Yes |
| Siinisüsteem Powernet | Yes |
Pakendamise üksikasjad
| Pakkimistase 1 | 4011395136027 |
| Pakkimistase 2 | 4011395136027 |
Muud tehnilised andmed
| Paigaldusviis | Süvistatud paigaldus (krohvi) |
| Värvus | Valge |
| Pinnatöötlus | Töötlemata |
| Kuvariga | Yes |
| Materjal | Termoplastist |
| Materjal | Plast |
| Vargusevastane/lahtimonteerimiskaitse | Yes |
| Käsisäte | Yes |
| Võimalik on paralleelne hooldus | Yes |
| Kohalolunupp | Yes |
| RAL-number (akin) | 9016 |
| Kaitseaste (IP) | IP20 |
| LED näidikuga | Yes |
| Pinna liik | Läikiv |
Kirjeldus

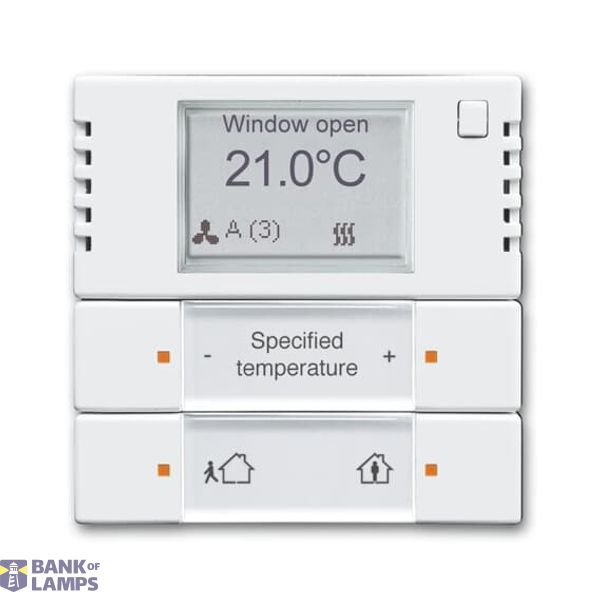

FM sensors for KNX, FM sensors solo®, Touch sensor with 2/4gang with thermostat, studio white, Control element, 2/4gang, with RTC multi-function/colour concept With labelling field. For ABB i-bus® KNX bus coupler 6120/12-101, 6120/13. Support of KNX functions through innovative colour concept yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function) rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function) The controller is a constant room temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems. The fan stage can be switched manually or in automatic mode. Transparent labelling sheet with standard symbols included in delivery. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.) Control element: Switch contacts left/right, also for selecting setpoint and mode of operation Display elements: LCD displaying operation mode, temperature, time and date Protection class (Device): IP 20 Temperature range (Device): -5 °C to 45 °C Dimensions: (L x W x D): 63 mm x 63 mm
