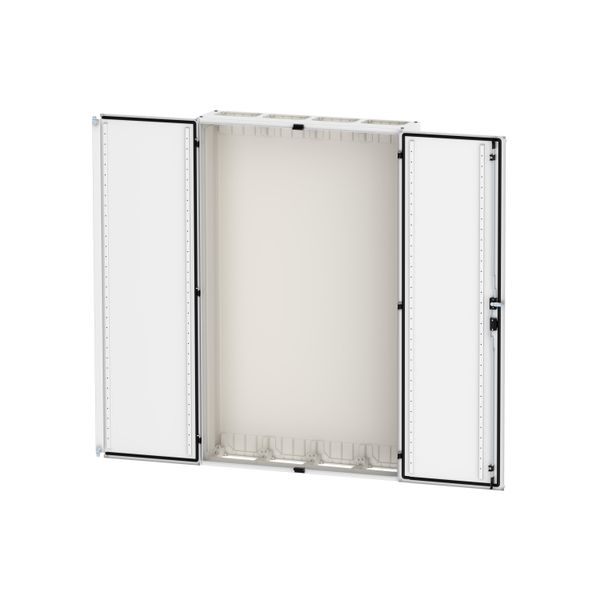

Floor-standing distribution board EMC2 empty, IP55, protection class II, HxWxD=1700x1050x270mm, white (RAL 9016)
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
1 522,05 €
EAN: 9010653042457
MPN: EP-501332
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | Floor-standing distribution board EMC2 empty, IP55, protection class II, HxWxD=1700x1050x270mm, white (RAL 9016) |
| Bränd | EATON |
| Kategooriad |
Empty Enclosures
|
| Päritoluriik | CZ |
| Harmoneeritud süsteemi kood | 8538 1000 00 |
| Kaitseaste (IP) | IP55 |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | 203 W |
| Max. permissible load of the enclosure according to IEC 62208 | 2000 N |
| Max. permissible load of the door(s) according to IEC 62208 | 100 N |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010653042457 |
Muud tehnilised andmed
| Värvus | Valge |
| Laius | 1050 mm |
| Kõrgus | 1700 mm |
| Sügavus | 270 mm |
| RAL-number | 9016 |
| Koos montaažiplaadiga | No |
| Uste arv | 2 |
| Lukkude arv | 0 |
| Seinale paigaldatav | Yes |
| EMC-variant | Yes |
| Klaasuksega | No |
| On jaotatav Can be coupled | Yes |
| Materjal | Muul viisil |
| Materjal | Teras |
| Löögikindlus | IK10 |
| Sobib väliskasutuseks | No |
| Sobib metrical mounting | No |
| Montaažiplaadi sügavus on seadistatav | No |
| Ventilatsiooniuksega | No |
| Pinna liik | Pulbervärvitud |
| Tagakülje üksega | No |
| Seina sisseehitatud | No |
| Viilkatusega | No |
| Pooluste kinnitus | No |
| Max. permissible load of the mounting plate according to IEC 62208 | 880 N |
| Floor standing wall model | Yes |
| Eraldiseisev | No |
| Nurga mudel | No |
| Vahetu paigaldamine | No |
Kirjeldus
Floor-standing distribution board EP Modular Class 2 (EMC2) empty, IP55, protection class II, HxWxD=1700x1050x270mm, white (RAL 9016), powder-coated sheet metal chassis, total insulated internally to meet class II criterion, prepared for F3A-flanges top/bottom, door with external hinges, 180° opening angle, standard delivery with rotary lever, door gasket foamed all around, intended to be used with EP installation system for interior equipment;
