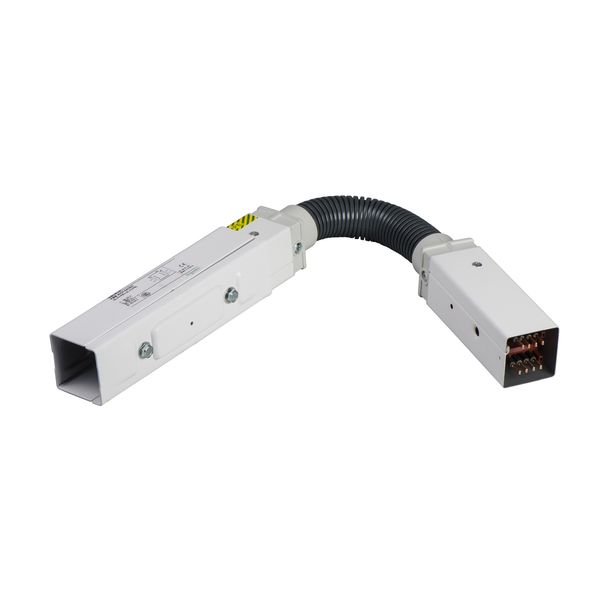

FLEX.ELEM. 40A 3P+N/3P+N 50 CM WIT image 1
Schneider Electric

FLEX.ELEM. 40A 3P+N/3P+N 50 CM WIT

Ainult telli
Hind (ilma KM-ta):
173,75 €
Hind kehtib kuni 04.01.26
EAN: 3606480001307
MPN: KBB40DF4405W
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi FLEX.ELEM. 40A 3P+N/3P+N 50 CM WIT
Bränd Schneider Electric
Kategooriad Busbar Systems and Accessories
Päritoluriik* FR
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmoneeritud süsteemi kood 8536 9001 00
Tunnuspinge, AC 50 Hz 230-400 V
Nimivool AC 50 Hz korral 40 A

Pakendamise üksikasjad

Pakkimistase 1 3606480001307

Muud tehnilised andmed

Värvus Valge
Laius 51 mm
Mudel Kahepoolne
Kõrgus 60 mm
Painduv Yes
RAL-number 9003
Juhtide arv (ilma maanduseta) 8
Pooluste arv 10
Pikkus 500 mm
Kaitseaste (IP) IP55
Väljavõttude arv 0

Kirjeldus

Canalis busbar trunking for KBB. It's applied to power socket distribution and lighting with 3 dimensions direction change. The operational voltage is from 230VAC to 400VAC 50/60Hz. The rated operational current is 40A at 35 ℃. It provides white RAL 9003 surface treatment. Flexible length busbar which mounting by clips. The operational ambient air temperature is from 0 °C to 35 °C without derating. Designed with 2 circuits allowing. It provides 2 pT radiated magnetic field. The flexible length is 0.5m, and the section is 46mm x 46mm. It provides IP55 protection conforming to IEC 60529. IK06 conforms to EN/IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
