moisture-proof diffuser luminaire
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
EAN: 9010757173255
MPN: 42190035
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | EXTONA S 2300-840 MB EVG - moisture-proof diffuser luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Plahvatuskindlad valgustid
|
| Päritoluriik | CZ |
| Harmoneeritud süsteemi kood | 9405 1140 00 |
| Laius | 155 mm |
| Pikkus | 670 mm |
| Kõrgus/sügavus | 105 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK10 |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP66 |
| Valgusvoo nurk | Eriti lai valgusvoo nurk >80° |
| Värvustemperatuur | 4000 K |
| Süsteemi võimsus | 15 W |
| Efektiivne valgusvoog | 2251 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010757173255, 9010757173255 |
Muud tehnilised andmed
| Paigaldusviis | Lakke paigaldus |
| Kaitseklass | I |
| Lambipesa | Puudub |
| Juhi ristlõige | 2.5 mm² |
| Ühenduse liik | Muul viisil |
| Pinge liik | AC |
| Juhtliidese tüüp | LED-valgusti voolujuhtimisega seadis |
| Plahvatusohtlikule gaasikeskkonnale | Puudub |
| Lambiga | Yes |
| Sobib vastavalt lampide arvule | 1 |
| Sisaldab juhtseadist | Yes |
| Plahvatusohtlikule tolmukeskkonnale | Puudub |
| Valguse värvus | Valge |
| Konstantse valgusvoo juhtimine | No |
| Juhtmestiku liik | Suitable for through wiring |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Tunnus-ümbrustemperatuur IEC62722-2-1 järgi | -20-60 °C |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Võimsustegur | 0.85 |
Allalaadimised
Kirjeldus

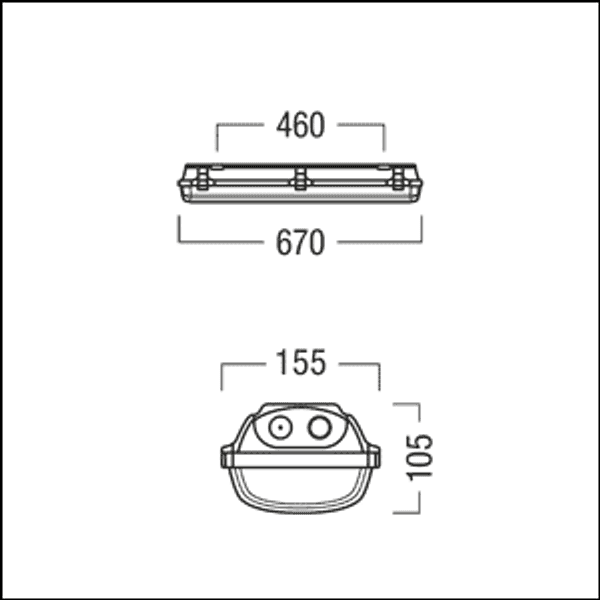

Explosion-proof LED moisture-proof diffuser luminaire, ATEX zone 2/22 with IP66 protection rating and Impact strength: IK10. Luminaire input power: 15 W, electronic ballast with LED converter. Cover and basic diffuser made of impact-resistant polycarbonate, temperature- and UV-resistant, made as a single injection-moulded piece. LED service life lasts 100000 h before luminous flux is reduced to 85% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 2251 lm, Luminaire efficacy: 150 lm/W. Colour rendering Ra > 80, colour temperature 4000 K. Luminaire with symmetric distribution (medium beam). Mounting via included V2A standard spring clips to ceilings or walls. Explosion protection is guaranteed in ambient temperature: -20°C to +60°C. The luminaire is suitable for use in Zone 2 and 22 hazardous areas according to FTZU 23 ATEX 0077 (ATEX type examination) and according to EN/IEC 60079-0:2018, EN/IEC 60079-15:2017 and EN 60079-31:2014 (Ex II 3G Ex nR IIC T6 Gc/ II 3D Ex tc IIIC T80°C Dc). Silicone-free luminaire. Protection class: SC1, 850°C glow-wire tested. Dimensions: 670 x 155 x 105 mm; weight: 1.74 kg.
