Escape sign luminaire
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
EAN: 5037319374350
MPN: 42186003
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | ERGOSIGN 80 P MSW ECD WH IP54 - Escape sign luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Avariivalgustid
|
| Päritoluriik | RS |
| Harmoneeritud süsteemi kood | 9405 6180 00 |
| Laius | 87 mm |
| Pikkus | 201 mm |
| Kõrgus/sügavus | 61 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK03 |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP54 |
| Süsteemi võimsus | 2.2 W |
| Efektiivne valgusvoog | 18 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 5037319374350, 5037319374350 |
Muud tehnilised andmed
| Paigaldusviis | Seinale paigaldatav |
| Kaitseklass | I |
| Lambipesa | Puudub |
| Juhi ristlõige | 1.5 mm² |
| Ühenduse liik | Muul viisil |
| Kere värvus | Valge |
| Pinge liik | AC |
| Kere materjal | Alumiinium |
| Lambiga | No |
| Tulekindlus "D" | Yes |
| Sobib vastavalt lampide arvule | 1 |
| Konstantse valgusvoo juhtimine | No |
| Juhtmestiku liik | Suitable for through wiring |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Võimsustegur | 0.5 |
Allalaadimised
Kirjeldus

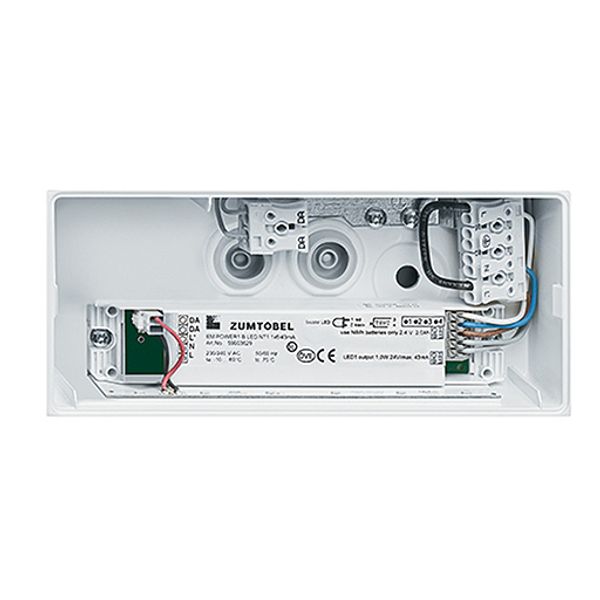

LED Escape sign luminaire Luminaire for central emergency light supply, for single luminaire monitoring via DALI (DALI-2 certified), settable emergency light level; wall mounted; die-cast aluminium base unit in white powder-coated finish; control unit with NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; plug-in terminals for through-wiring up to 2.5 mm²; cable feed from any side, flexible cable guide in housing base; no tools required to fit frameless pictogram or to replace the NiMh battery in the self-contained models (E1D, E3D and E8D); protection rating: IP54, class of protection: SC1; Impact strength: IK03; non-maintained and maintained mode possible, Maintained mode: -40 °C to +30 °C, non-maintained mode: -40 °C to +35 °C; power supply: 220-240 V AC (+/- 10 %) 50-60 Hz; 176-280 V DC; Dimensions: 201 x 87 x 61 mm; weight: 0.48 kg, Luminaire wired with halogen-free leads; for use in environments in which the accumulation of non-conductive dust on the luminaire can be expected; please order escape sign separately;
