Zumtobel

Control point, square-edge anthracite

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
435,62 €
Hind kehtib kuni 24.12.25
EAN: 9008709051195
MPN: 22154665
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi ED-CCB 01/02/03 a+e - Control point, square-edge anthracite
Bränd Zumtobel
Kategooriad Bus System Devices (KNX/Modbus)
Päritoluriik AT
Harmoneeritud süsteemi kood 8538 9099 00
Värvus Antratsiit
Materjal Plast
Kaitseaste (IP) IP20

Pakendamise üksikasjad

Pakkimistase 1 9008709051195, 9008709051195

Allalaadimised

REACH süvalink CE DOC deklaratsioon (CE vastavusdeklaratsioon) RoHS deklaratsioon Müügibrošüür

Kirjeldus

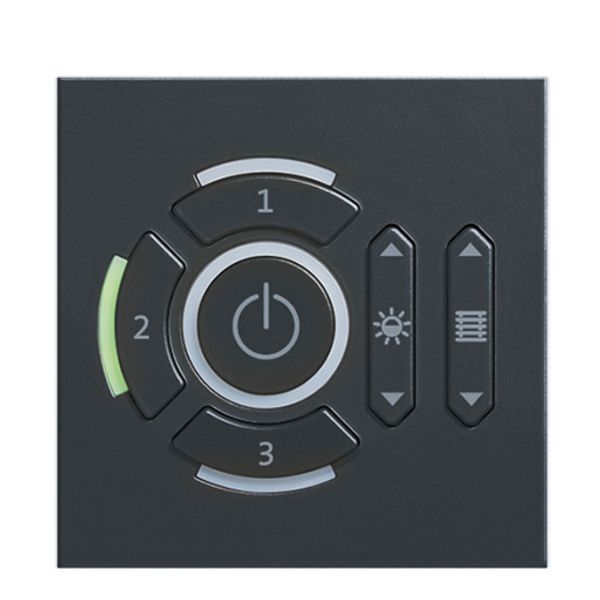

Circle Control point, square-edge anthracite with circular button layout for running three lighting scenes (room scenarios). A green LED indicates the active scene. Central Come/Go button for use on entering/leaving the room. If the "Go" scene is enabled (no one in room), the Come/Go button has a red illuminated surround for orientation. In addition, the user can manually adjust the active scene using two equipment rocker switches for controlling two installations in the room. The package and rocker switches are made of plastic in anthracite satin-matt finish. All buttons are printed with intuitive pictograms. Fitted in a single standard Euro backbox or UK metal backbox (not included); screws invisible after installation. The control unit is connected to the DALI control line using a pluggable screw terminal (interchangeable polarity). Power supplied via the DALI control line (no mains connection) for a current consumption of 6mA (3 DALI loads). Dimensions: 87 x 87 x 13 mm, weight: 0.15 kg.
