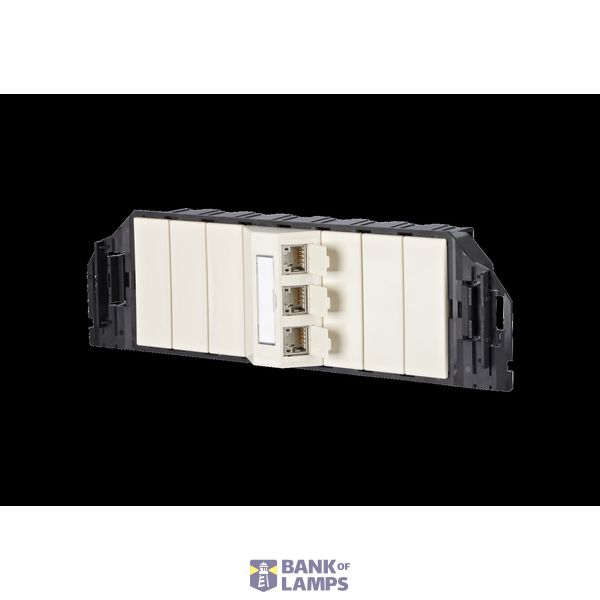

E-DAT subway 3 port GB3 pearl white
Ainult telli
Pole saadaval
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | E-DAT subway 3 port GB3 pearl white |
| Bränd | METZ CONNECT |
| Päritoluriik* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 8536 6990 00 |
| Kooste ehitus | Põhielement täiskorpusega |
| Värvus | Valge |
| RAL-number | 1013 |
| Ühenduse liik | Isolatsiooni läbiv liitmik |
| Väljundi suund | Kallutatud |
| Sobib ühenduste arvule | 3 |
| Kategooria | 6 |
| Paigaldus kanalisse | No |
| Kinnitusviis | Klikkühendusega |
| Varjestatud siinid | Yes |
| Varjestatud kere | No |
| Eraldi tõmbetõkisega | No |
| Varjestusühenduse paigaldusviis | Klamber |
| Eraldi maaühendus | Yes |
| Mehaaniline kodeerimine | No |
| Pistmiku (konnektori) liik | RJ45 8 (8) |
| Paigaldus põrandakarpi/põrandaalusesse karpi | Yes |
| Koos märgise kohaga | Yes |
| Pindpaigaldus | No |
| Tolmukaitsekattega | Yes |
| Sobib disainimiseks | No |
| Koos terminali takistiga | No |
| Koos pesade/puksidega | Yes |
| Kaitseaste (IP) | IP20 |
| Süvistatud paigaldus | No |
| Värvikoodeerimine | No |
| Laius | 208 mm |
| Kõrgus | 73 mm |
| Seadme sügavus | 54.5 mm |
Pakendamise üksikasjad
| Pakkimistase 1 | 4250184106272, 4250184106272 |
Kirjeldus
Termination unit for mounting in service outlets for underfloor systems, suitable for underfloor service outlets of OBO Bettermann (Ackermann) and some types of :hager (Electraplan Solutions), GB3 design with E-DAT modul, Cat.6, A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certifiedcompliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1tested: Link up to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy to install connection of 2 to 4 pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC), marking of conductor assignment to T568A and T568B, incl. module frame, caps and dummy covers, module plug direction 45° upwards, with label window for enclosed identification labels, label sheet 209 x 294 mm see accessory, integrated dust protection covers (also colored), color: black device casing, pearl white covers, variants: 3 ports, 6 ports, 9 ports, 12 ports
