METZ CONNECT

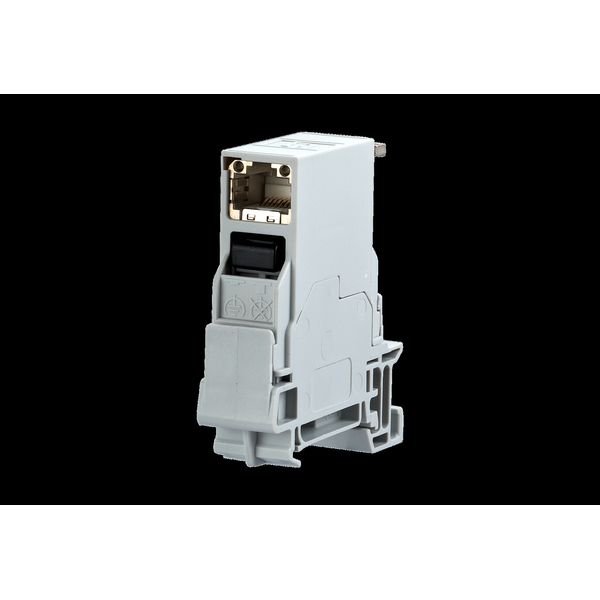

E-DAT Industry terminal rail TS35 + RJ45 field jack insert Cat.6 Class

Ainult telli
Hind (ilma KM-ta):
23,77 €
Hind kehtib kuni 28.02.26
EAN: 4250184119142
MPN: 1401106113KE
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi E-DAT Industry terminal rail TS35 + RJ45 field jack insert Cat.6 Class
Bränd METZ CONNECT
Kategooriad Assembly Accessories and Parts
Päritoluriik* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmoneeritud süsteemi kood 8536 6990 00
Kinnitusviis DIN-latt (paigaldusliist) 35 mm
DIN-lati adapteri tüüp Sirge

Pakendamise üksikasjad

Pakkimistase 1 4250184119142, 4250184119142

Muud tehnilised andmed

Materjal Plast

Kirjeldus

Termination unit for mounting on TH35 rails to DIN EN 60715 in electrical distribution panels for home and industrial installations, equipped with E-DAT Industry RJ45 field jack insert, vertical plugging direction, 90° to rail, compliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE, 4PPoE) and HDBaseT, easy to install connection of 2 to 4 pair data lines AWG 24/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 to BTR 8-fold insulation displacement connectors (IDC), width of 1HP allows mounting up to 12 units in a standard electrical distribution panel, When mounted as a device of protection class I, the equipotential bonding is realized directly over the top hat rail by means of a switchable integrated equipotential spring. This has to be connected to the equipotential bonding of the building by means of a bonding terminal, variants: pin assignment to T568A, T568B or PROFINET
