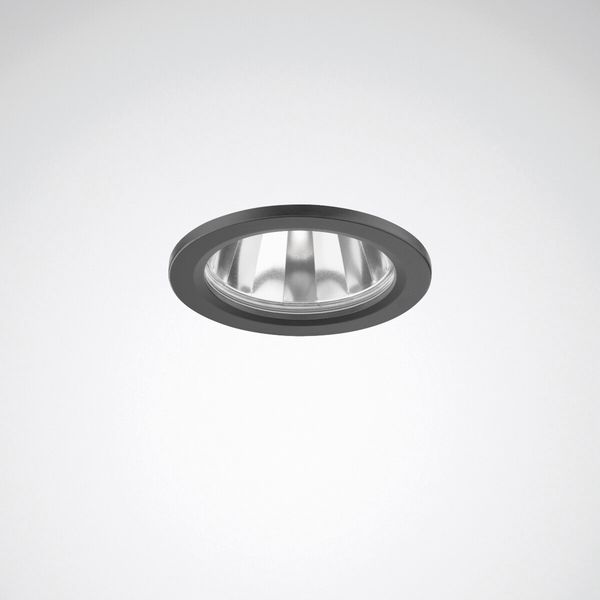

Downlights Inveria Reflector Black around ETDD 24W 2200lm rotationally sym. wide (RB) IP65 IK07 2 SDCM

Round LED downlight for canopied outdoor areas. Recessed downlight with edge for plasterboard ceiling openings. Cut-out opening Ø 131 mm, Recess depth 115 mm. Installation in cast concrete ceilings via accessories Invera C 150 BE. With anodised aluminium reflector. With rotationally symmetric wide light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 2200 lm, connected load 24 W, maximum luminous efficiency of luminaire 92 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 2 SDCM.. Mean rated service life L80(tq 25 °C) = 60,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium. Surface coated black (RAL 9005). High resistance to UV rays and resistant to corrosion by salt spray. On request the luminaire body can be provided without added cost in the following colours: black textured (Akzo Nobel 8118669, similar to RAL 9005, V5), white textured (Akzo Nobel 8158870, similar to RAL 9016, V6), grey textured (Akzo Nobel 8129595, similar to RAL 9006, V7). Other colour variants are available for an additional charge in accordance with the RAL or DB colour code. External dimensions of ceiling ring Ø 149 mm, luminaire height 109 mm. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK07. Weight: 0,9 kg. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 1 kV / 2 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
