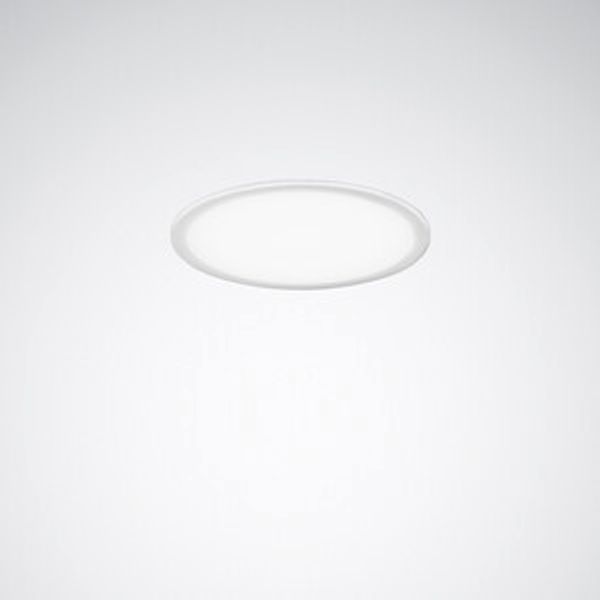

Downlights Inplana HCL Prisms White around ETBLE 25W 3000lm Lambertian (L) IK03 3 SDCM

LED downlight for ceilings with cavity dimensions ≥ 35 mm With CASAMBI module for integration into a wirelessly controllable mesh network of up to 250 divices. The system is commissioned using the Casambi app (iOS and Android). Recessed downlight for cut-out ceiling openings. Installation in cast concrete ceilings via accessories. Tool-free ceiling installation via rapid-mounting springs. Cut-out opening Ø 300 mm, Recess depth 36 mm. With Lambertian light distribution. Harmonious light effect due to homogeneously illuminated light emission. With HCL equipment for controlling the light color by means of a separate control unit (DT8). Luminaire luminous flux 3000 lm, connected load 25 W, maximum luminous efficiency of luminaire 120 lm/W. Light colour variable (warm white - daylight white), correlated colour temperature (CCT) variable (2700 K - 6500 K), general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium. Surface coated white (RAL 9016). Luminaire diameter Ø 234 mm, luminaire height 42 mm. Permissible ambient temperature (ta): - +25 °C. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP20, Protection rating on room side: IP54, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 1,5 kg. With Bluetooth Low Energy operating device (BLE). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
