DEHNpatch M CLE RJ45B 48 surge arrester

DEHNpatch M CLE RJ45B 48 surge arrester image 1

DEHNpatch M CLE RJ45B 48 surge arrester image 2

DEHNpatch M CLE RJ45B 48 surge arrester image 3

DEHNpatch M CLE RJ45B 48 surge arrester

Name: DEHNpatch M CLE RJ45B 48 surge arrester
Brand: Dehn
Price: 139.800 EUR
Availability: PreOrder

Ainult telli

Hind (ilma KM-ta):

139,80 €

Hind kehtib kuni 24.12.26

EAN: 4013364118935

MPN: 929121

Pakend: 1

Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord	Uus
Tootja nimi	DEHNpatch M CLE RJ45B 48 surge arrester
Bränd	Dehn
Kategooriad	Surge Protection Devices (SPD)
Päritoluriik*	RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmoneeritud süsteemi kood	8536 3010 00
Suurim kestevpinge AC	34 V
Nimilahendusvool (8/20)	10 kA
Nimikoormusvool	1 A
Pingekaitsenivoo soonte vahel	180 V
Suurim kestevpinge DC	48 V
Kaitseaste (IP)	IP10
Nimipinge DC	48 V

Pakendamise üksikasjad

Pakkimistase 1

4013364118935, 4013364118935

Muud tehnilised andmed

Paigaldusviis	DIN-latt (paigaldusliist) 35 mm
Ühendus 1	RJ45
Pikse impulssvool (10/350)	0.5 kA
Juhtide arv (ilma maanduseta)	8
Piirsagedus	250 MHz
Pingekaitsenivoo soone ja maa vahel	500 V
Assembly width	19 mm
Earthing via	DIN-latt (paigaldusliist)

Allalaadimised

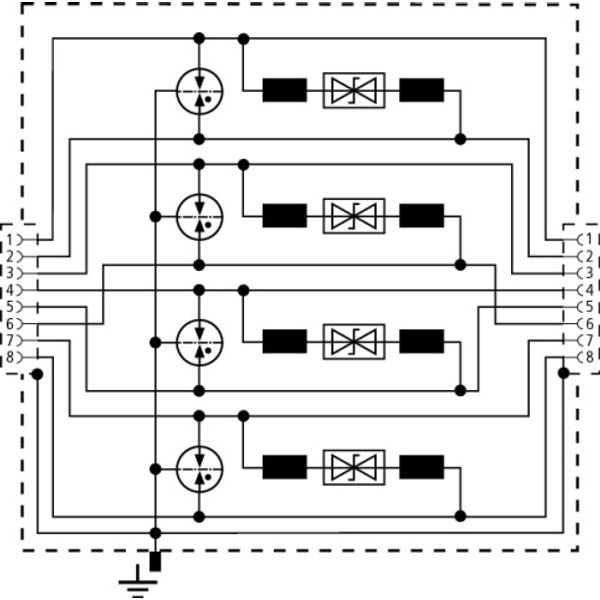

Toote andmeleht Mõõdetud joonis Skeem REACH süvalink

Kirjeldus

Universal arrester for Industrial Ethernet, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems according to class E up to 250 MHz. Protection of all pairs by means of powerful gas discharge tubes and one adapted filter matrix per pair. Fully shielded type with sockets for DIN rail mounting.
