Escape sign luminaire
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
EAN: 5037319374220
MPN: 42185990
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | CUBESIGN 210 P MSC ECP - Escape sign luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Avariivalgustid
|
| Päritoluriik | RS |
| Harmoneeritud süsteemi kood | 9405 6180 00 |

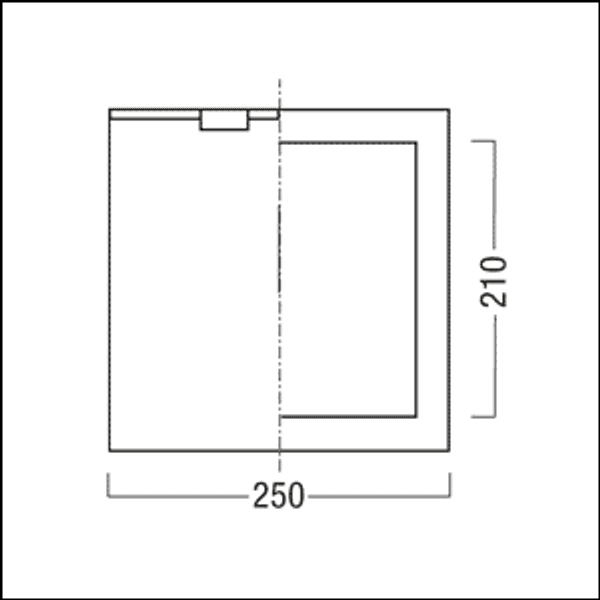

| Laius | 250 mm |
| Pikkus | 250 mm |
| Kõrgus/sügavus | 35 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK03 |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP40 |
| Süsteemi võimsus | 7.7 W |
| Efektiivne valgusvoog | 344 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 5037319374220, 5037319374220 |
Muud tehnilised andmed
| Kaitseklass | I |
| Lambipesa | Puudub |
| Juhi ristlõige | 1.5 mm² |
| Ühenduse liik | Muul viisil |
| Kere värvus | Hõbedane |
| Pinge liik | AC |
| Juhtliidese tüüp | LED-valgusti voolujuhtimisega seadis |
| Kere materjal | Teras |
| Lambiga | No |
| Tulekindlus "D" | No |
| Sobib vastavalt lampide arvule | 1 |
| Konstantse valgusvoo juhtimine | No |
| Juhtmestiku liik | Suitable for through wiring |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Võimsustegur | 0.81 |
Allalaadimised
Kirjeldus
LED Escape sign luminaire Luminaire for central emergency light supply, for single monitoring of the luminaire via Powerline in connection with the eBox System, settable emergency light level; addressing also alternatively possible visually or via EZ-addressing; cool-white LEDs, luminance ≥ 500 cd/m2. Uniform illumination of escape sign; base unit made of sheet aluminium; installed on ceiling or by cord-suspension (not included). Control unit with NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; power supply: 220/240V AC; total luminaire power: Luminaire input power: 7.7 W; protection rating: IP40, class of protection: SC1; Impact strength: IK03; non-maintained and maintained mode possible, Maintained mode: -40 °C to +30 °C, non-maintained mode: -40 °C to +35 °C; power supply: 220-240 V AC (+/- 10 %) 50-60 Hz; 176-280 V DC, ; Dimensions: 250 x 250 x 35 mm; weight: 0.7 kg, ; please order escape sign separately;
