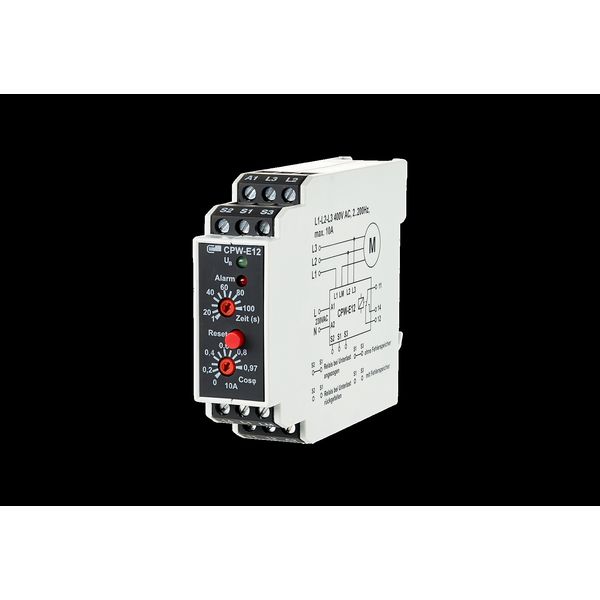

CPW-E12, 230 V AC, 1 - 10 A
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
58,94 €
EAN: 4250184121039
MPN: 1102810520
Pakend: 1
Karp: 2
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | CPW-E12, 230 V AC, 1 - 10 A |
| Bränd | METZ CONNECT |
| Kategooriad |
Monitoring Relays
|
| Päritoluriik | DE |
| Harmoneeritud süsteemi kood | 9030 3320 00 |
| Faasijärjestuse seire | No |
| Faaside ebasümmeetria jälgimine | No |
| Elektriühenduse liik | Kruviühendus |
| Normaalselt suletud kontaktide arv | 0 |
Pakendamise üksikasjad
| Pakkimistase 1 | 4250184121039 |
| Pakkimistase 2 | 4250184121039 |
Muud tehnilised andmed
| Laius | 22.5 mm |
| Kõrgus | 75 mm |
| Sügavus | 95 mm |
| Eemaldatavate klambritega | No |
| Faasirikke jälgimine | No |
| Alapinge tuvastusfunktsioon | No |
| Liigpinge tuvastusfunktsioon | No |
| Normaalselt avatud kontaktide arv | 0 |
| Ümberlülituskontaktide arv | 1 |
Kirjeldus
The cosPhi monitor is used for detecting underload. The response value and the response time can be adjusted. It can also be used in combination with a frequency converter (frequency: 2 to 200 Hz). Monitoring is accomplished by recognizing the phase shift between current and voltage. This phase angle varies depending on the motor load. The functions can be adjusted by means of bridges S1 - S2 - S3: S1 - S2 open = relay deactivated with underload, S1 - S2 bridged = relay activated with underload, S1 - S3 open = with fault memory, S1 - S3 bridged = without fault memory. The module can be unblocked remotely by means of a closing contact on S1 - S3. If there is a fault memory (no bridge over S1-S3), the fault message is active until it is acknowledged or the supply voltage is interrupted.
Tarvik
4250184120469
4250184120476
