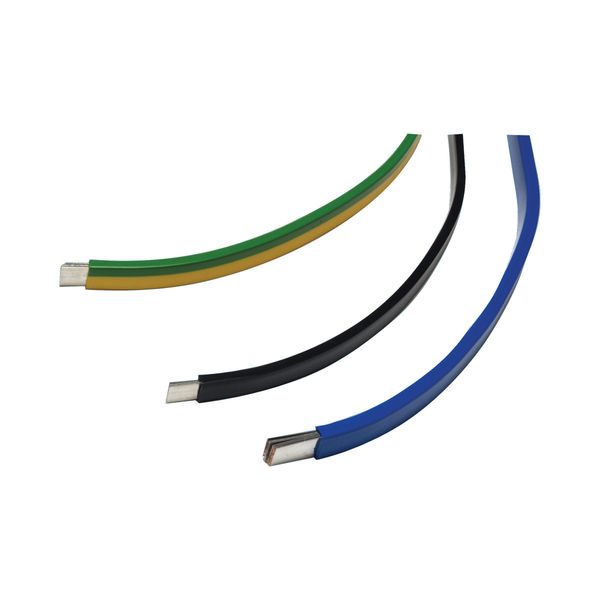

Copper band 630A, 8x24x1mm, black image 1

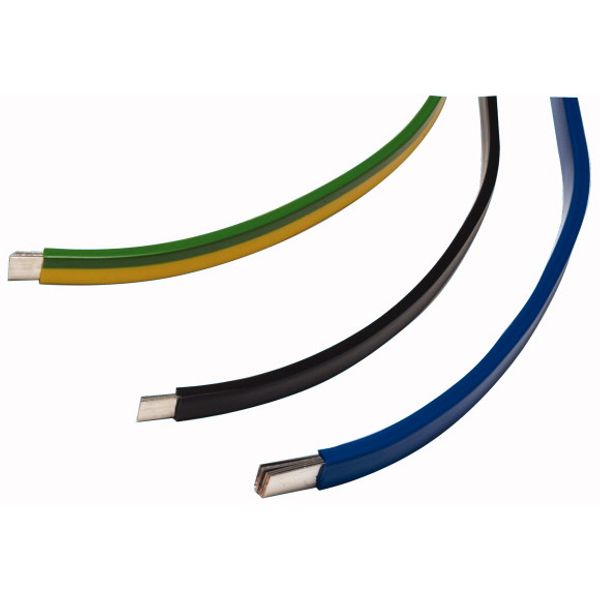

Copper band 630A, 8x24x1mm, black image 2

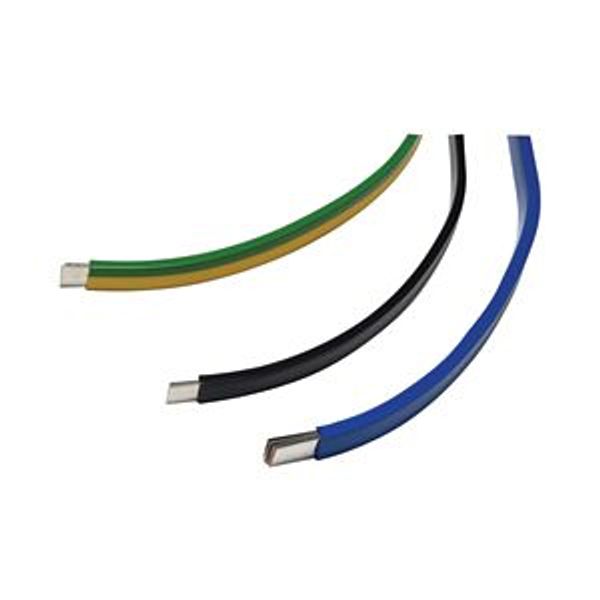

Copper band 630A, 8x24x1mm, black image 3
Copper band 630A, 8x24x1mm, black image 4
Copper band 630A, 8x24x1mm, black thumbnail 1
Copper band 630A, 8x24x1mm, black thumbnail 2
Copper band 630A, 8x24x1mm, black thumbnail 3
Copper band 630A, 8x24x1mm, black thumbnail 4
EATON

Copper band 630A, 8x24x1mm, black

Ainult telli
Hind (ilma KM-ta):
230,63 €
Hind kehtib kuni 24.12.25
EAN: 4015081171705
MPN: 119033
Pakend: 1
Karp: 5
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi Copper band 630A, 8x24x1mm, black
Bränd EATON
Kategooriad Wiring and Cable Management
Päritoluriik DE
Harmoneeritud süsteemi kood 8544 4995 00
Laius 24 mm
Paksus 12 mm
Pikkus 2000 mm
Tunnus-talitlusvool 630 A

Pakendamise üksikasjad

Pakkimistase 1 4015081171705
Pakkimistase 2 9008790168550

Muud tehnilised andmed

Lamineeritud Yes
Lamelli paksus 1 mm
Lamellide arv 8

Kirjeldus

Copper band isolated, laminated conductor E-Cu, tinned, UL approved up to max. 600VAC, insulating material heat resistant up to +105 °C, dimensions (number of layersxwidthxthickness)=8x24x1mm, color black, rated operational current Ie=630 A, self-extinguishing according to UL 94 V0, insulation resistance to IEC 60243-1 20 kV/mm, rated operating voltage Ue=690VAC
