Contactor, AC-1, 275 A/690 V/40 °C, 3-pole, 23-26 V AC/DC, 2 NO+2 NC
Müüja laos
Hind (ilma KM-ta):
253,29 €
EAN: 4011209506923
MPN: 3RT1456-6AB36
Karp: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | Contactor, AC-1, 275 A/690 V/40 °C, 3-pole, 23-26 V AC/DC, 2 NO+2 NC |
| Bränd | Siemens |
| Kategooriad |
AC Power Contactors
|
| Päritoluriik* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 8536 4900 00 |
| Tunnustalitlusvõimsus, AC-3, 400 V | 0 kW |
| Normaalselt avatud peakontaktide arv | 3 |
| Normaalselt suletud peakontaktide arv | 0 |
| Tunnus-talitlusvool Ie, AC-3, 400 V | 97 A |
| Juhtahelate tunnus-toitepinge, AC 50 Hz | 23-26 V |
| Juhtahelate tunnus-toitepinge, AC 60 Hz | 23-26 V |
| Juhtahelate tunnus-toitepinge, DC | 23-26 V |
| Aktiveerimispinge liik | AC/DC |
Pakendamise üksikasjad
| Pakkimistase 1 | 4011209506923 |
Muud tehnilised andmed
| Sobib DIN paigalduspaneelidele | Yes |
| Normaalselt avatud abikontaktide arv | 2 |
| Normaalselt suletud abikontaktide arv | 2 |
| Tunnus-talitlusvool Ie, AC-1, 400 V | 275 A |
| Nimitöövool AC-4, 400 V korral | 0 A |
| Tunnustalitlusvõimsus Ie, AC-4, 400 V | 0 kW |
| Tunnustalitlusvõimsus (NEMA) | 55.16240625 kW |
Kirjeldus

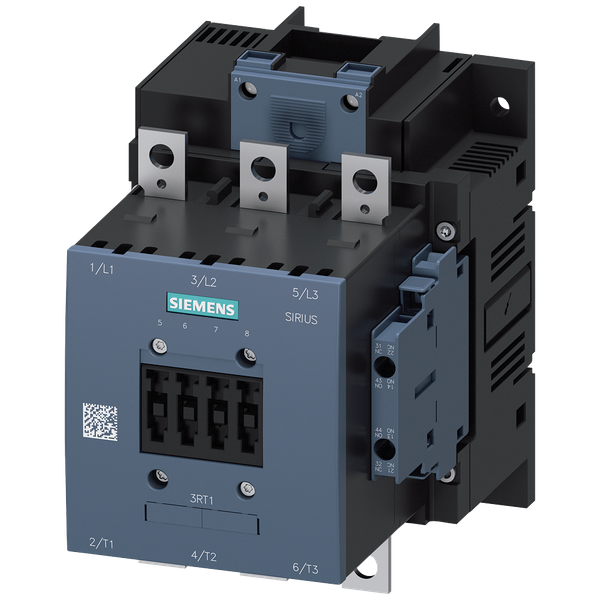

power contactor AC-1 275 A / 690 V / 40 °C 3-pole, Uc: 23-26 V AC(50-60 Hz) / DC drive: conventional auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal Contactor SIRIUS 3RT14 for switching resistive loads.
The 3RT1 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application (direct or via PLC input). Pre-installed auxiliary switches reduce the complexity of your design. 3RT1 contactors are climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
They are available in various sizes and in a wide performance range. They can be operated with AC or DC, and some versions have a wide voltage range and a PLC control input. The devices can be connected in the main circuit by means of rails or box terminals. For the auxiliary and control circuit they are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
A wide range of accessories is available for these contactors, such as wiring kits that considerably reduce wiring outlay, auxiliary switches or terminal covers.
Simple, efficient and always up to date - SIRIUS modular system.
