ComX 510 - energy server - UL - SDRAM4 Go
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
EAN: 3606480748936
MPN: EBX510
Pakend: 1
Karp: 15
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | ComX 510 - energy server - UL - SDRAM4 Go |
| Bränd | Schneider Electric |
| Kategooriad |
Bus System Devices (KNX/Modbus)
|
| Päritoluriik | DE |
| Paigaldusviis | DRA (DIN liistule) |
| Mudel | Muul viisil |
| Siinisüsteem KNX | No |
| Siinisüsteem Powernet | No |
| Laius mooduli arvudes | 8 |
| Muud siinisüsteemid | Muul viisil |
Pakendamise üksikasjad
| Pakkimistase 1 | 3606480748936 |
| Pakkimistase 2 | 3606480748934 |
Muud tehnilised andmed
| Kanalite arv | 0 |
| Võimsustarve | 0 W |
| Raadiosageduslik siinisüsteem | No |
| Siinisüsteem LON | No |
| Lahtimonteerimise kaitse | No |
| Raadioliides | Yes |
| Infrapunaliides | No |
| Protokoll | TCP/IP |
| Sõltuvalt tarnijast | No |
| Uuendatav | Yes |
| Visualiseerimine | No |
| Veebiserver | Yes |
| Kaitseaste (IP) | IP40 |
| LED näidikuga | Yes |
| Siinisüsteem KNX radio | No |
| Raadiosageduslik, kahesuunaline | No |
| Max. number of devices per channel | 0 |
Allalaadimised
Kirjeldus

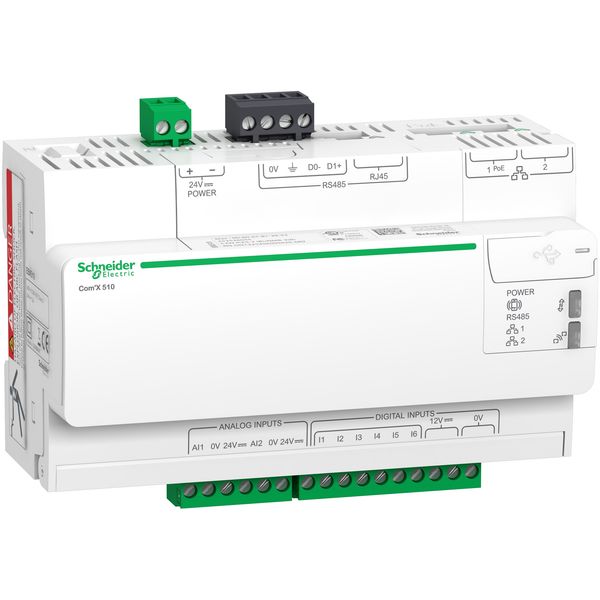

This device is a gateway with data logger that can collect information from up to 64 field devices. ComX devices collect energy data throughout the building, from electrical distribution devices (meters, switchgear) and smart panels. Part of EcoStruxure, the web service provide user interface for reporting and information. They deliver the data on local area network (LAN) or to remote servers to enable: Smart display: dashboards, historical graph charts, etc. Accessible with just a usual web browser, or remotely thanks to Powerview Remote Access service. Can be connected to network through Ethernet, or with optional WiFi, Zigbee or GPRS. It received IEC60950, UL508 and UL60950 certification. Wide control power range from a 24VDC source or even a Power of Ethernet 15.4 Watt DC. The gateway can be DIN rail mounted in a modular enclosure. Product dimensions are as follows: width 144 millimetres, depth 65.8 millimetres, height 91 millimetres and product weight 450 g.
