Combined arrester module for 4 single lines BLITZDUCTOR XT with LifeCh

Combined arrester module for 4 single lines BLITZDUCTOR XT with LifeCh image 1

Combined arrester module for 4 single lines BLITZDUCTOR XT with LifeCh image 2

Combined arrester module for 4 single lines BLITZDUCTOR XT with LifeCh image 3

Combined arrester module for 4 single lines BLITZDUCTOR XT with LifeCh

Name: Combined arrester module for 4 single lines BLITZDUCTOR XT with LifeCh
Brand: Dehn
Price: 239.260 EUR
Availability: PreOrder

Ainult telli

Hind (ilma KM-ta):

239,26 €

Hind kehtib kuni 24.12.25

EAN: 4013364109117

MPN: 920370

Pakend: 1

Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord	Uus
Tootja nimi	Combined arrester module for 4 single lines BLITZDUCTOR XT with LifeCh
Bränd	Dehn
Kategooriad	Surge Protection Devices (SPD)
Päritoluriik*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmoneeritud süsteemi kood	8536 3010 00
Ühendus 1	Screw terminal
Kaitseaste (IP)	IP20
Nimipinge DC	5 V

Pakendamise üksikasjad

Pakkimistase 1

4013364109117, 4013364109117

Muud tehnilised andmed

Paigaldusviis	Põhielemendile
Pikse impulssvool (10/350)	10 kA
Juhtide arv (ilma maanduseta)	4
Piirsagedus	100 MHz
Plahvatuskindel variant	Yes
Suurim kestevpinge AC	4.2 V
Nimilahendusvool (8/20)	20 kA
Nimikoormusvool	1 A
Pingekaitsenivoo soonte vahel	11 V
Pingekaitsenivoo soone ja maa vahel	11 V
Suurim kestevpinge DC	6 V
Ennetav termojuhtimine	Yes
Assembly width	12 mm
Earthing via	DIN-latt (paigaldusliist)

Allalaadimised

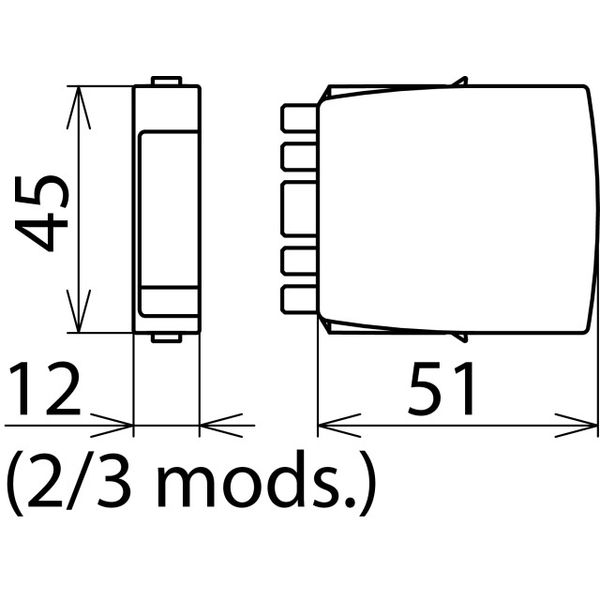

Toote andmeleht Mõõdetud joonis Skeem REACH süvalink

Kirjeldus

Space-saving combined lightning current and surge arrester module with LifeCheck feature for protecting four single lines sharing a common reference potential as well as high-frequency transmissions without galvanic isolation. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.
