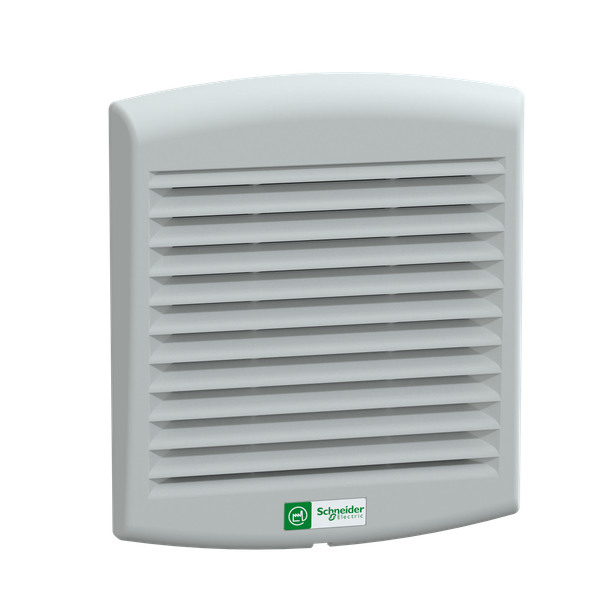

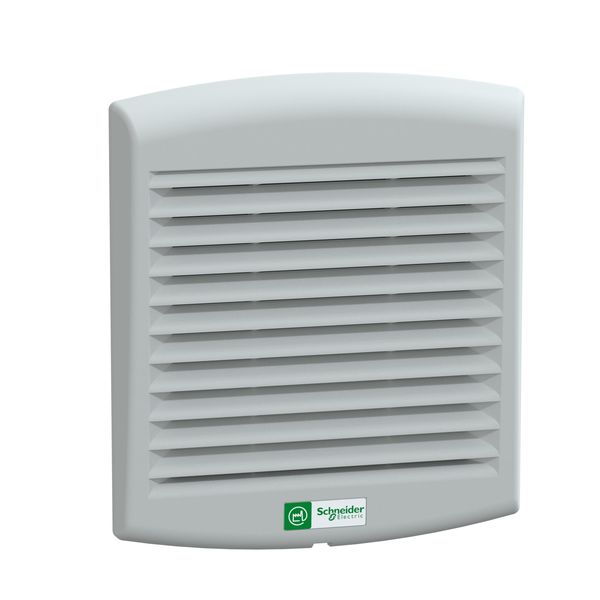

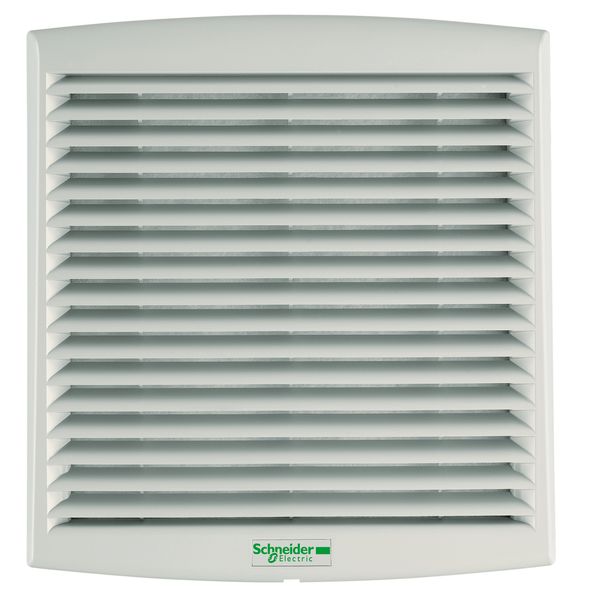

ClimaSys forced vent. IP54, 80m3/h, 24V DC, with outlet grille and filter G2
Müüja laos
Hind (ilma KM-ta):
69,89 €
EAN: 3606480151224
MPN: NSYCVF85M24DPF
Pakend: 1
Kaubaalus: 300
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | ClimaSys forced vent. IP54, 80m3/h, 24V DC, with outlet grille and filter G2 |
| Bränd | Schneider Electric |
| Kategooriad |
Cabinet Cooling and Heating
|
| Päritoluriik* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 8414 5100 00 |
| Kaitseaste (IP) | IP54 |
| Mahuline puhumine, vabapuhumine | 80 m³/h |
| Talitluspinge, DC | 24 V |
Pakendamise üksikasjad
| Pakkimistase 1 | 3606480151224 |
| Pakkimistase 2 | 3606480151224 |
Muud tehnilised andmed
| Paigaldusviis | Haakuriga paigaldus |
| Värvus | Hall |
| Laius | 150 mm |
| Kõrgus | 170 mm |
| Sügavus | 62 mm |
| RAL-number | 7035 |
| Pinge liik | DC |
| Sobib paigaldamiseks 19 tollisele karkassile | No |
| Number of fans | 1 |
| EMC-variant | No |
| Kaitsekattega | Yes |
| Koos filtriga | Yes |
| Tunnusvõimsus | 7.6 W |
| Lae ventilaator | No |
| Sisselibistatav ventilaator | Yes |
| Õhuringlusega | Yes |
| Seina sisseehitatud | No |
| Müratase | 49 dB(A) |
| Kaitseaste (NEMA) | 13 |
Allalaadimised
Kirjeldus
ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 7.6W 50 Hz. Free flow rate with standard filter of 80 m3/h at 50 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
