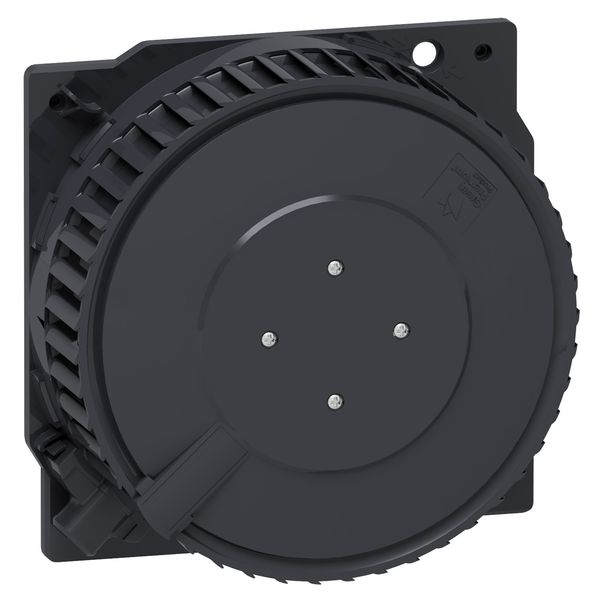

ClimaSys CVHD outdoor HD fan-box without grille and filter 550 m3/h 230VAC
Ainult telli
Hind (ilma KM-ta):
345,91 €
EAN: 3606480678769
MPN: NSYCVF550M230FB
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | ClimaSys CVHD outdoor HD fan-box without grille and filter 550 m3/h 230VAC |
| Bränd | Schneider Electric |
| Kategooriad |
Cabinet Cooling and Heating
|
| Päritoluriik* | ES |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Kaitseaste (IP) | IP55 |
| Mahuline puhumine, vabapuhumine | 550 m³/h |
| Talitluspinge, AC 50 Hz | 230 V |
| Talitluspinge, AC 60 Hz | 230 V |
Pakendamise üksikasjad
| Pakkimistase 1 | 3606480678769 |
Muud tehnilised andmed
| Paigaldusviis | Kruviühendus |
| Värvus | Hall |
| Laius | 222.8 mm |
| Kõrgus | 222.8 mm |
| Sügavus | 90 mm |
| RAL-number | 7016 |
| Pinge liik | AC |
| Sobib paigaldamiseks 19 tollisele karkassile | No |
| Number of fans | 1 |
| EMC-variant | No |
| Kaitsekattega | No |
| Koos filtriga | No |
| Tunnusvõimsus | 1500 W |
| Lae ventilaator | Yes |
| Sisselibistatav ventilaator | No |
| Õhuringlusega | Yes |
| Seina sisseehitatud | No |
| Müratase | 60 dB(A) |
| Kaitseaste (NEMA) | 13 |
Allalaadimised
Kirjeldus
ClimaSys CV Fanbox without grille and filter 230V 50Hz or 60Hz. 72 W 50 Hz, 88 W 60 Hz. Free flow rate with standard filter of 562 m3/h at 50 Hz and 586 m3/h at 60 Hz. 350 Pa flow rate 0 m³/h. 223 x 223 x 90 mm. Spring clamp terminal. 1 fanbox and 4 screws. Dark grey (RAL 7016) . 1.7 kg. Ball bearing type Protection IP44 and IP55 grid.
