CIRCLE tune Kit CCS 01/02/03 h+t - Kit: control point, bus supply image 1
CIRCLE tune Kit CCS 01/02/03 h+t - Kit: control point, bus supply image 2
CIRCLE tune Kit CCS 01/02/03 h+t - Kit: control point, bus supply thumbnail 1
CIRCLE tune Kit CCS 01/02/03 h+t - Kit: control point, bus supply thumbnail 2
Zumtobel

Kit: control point, bus supply

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
Hind kehtib kuni kaupa jätkub
EAN: 4024318897363
MPN: 22185168
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi CIRCLE tune Kit CCS 01/02/03 h+t - Kit: control point, bus supply
Bränd Zumtobel
Kategooriad Valgusti tarvikud
Päritoluriik AT
Harmoneeritud süsteemi kood 8538 9099 00
Värvus Hõbedane
Lisatarviku liik Lüliti

Pakendamise üksikasjad

Pakkimistase 1 4024318897363, 4024318897363

Allalaadimised

REACH süvalink CE DOC deklaratsioon (CE vastavusdeklaratsioon) RoHS deklaratsioon Müügibrošüür

Kirjeldus

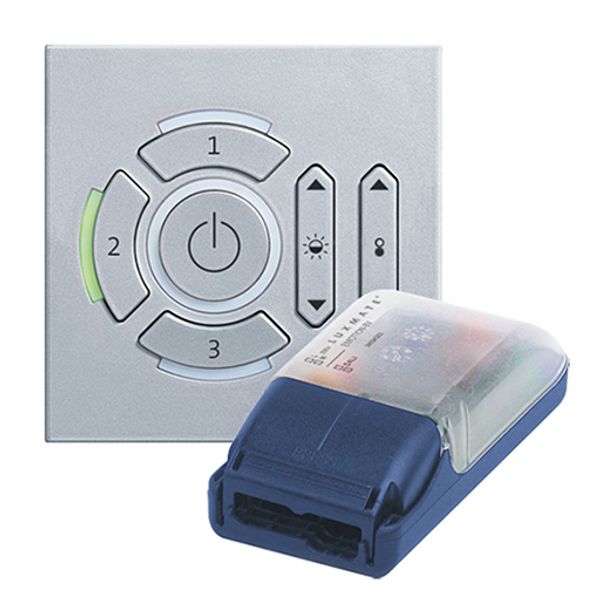

Kit: control point, bus supply; flexible and attractively priced lighting controller for controlling scene lighting and colour temperature; can control up to 64 DALI-compatible ballasts / control gear units. Control unit: has circular button layout for running three lighting scenes. Central, illuminated Come/Go button and two rocker switches, one assigned to the lighting level and the other to the colour temperature. The plastic housing and switches have a silver satin-matt finish, Dimensions: 87 x 87 x 13 mm. Easy to fit in single installation box provided by customer. Power supplied via DALI control line (no mains connection), current consumption 6mA (3 DALI loads). Power supply: for up to 64 bus users or 100 DALI loads (max.200mA). Short-circuit proof and can withstand an external voltage of 230/240V. Made of halogen-free, flame-retardant polycarbonate. For installation in cable conduits or ceiling recess; permitted ambient temperature: 0°C to +50°C. IP20 degree of protection, dimensions: 101.5 x 29.5mm.
