Similar figure image 1
Siemens

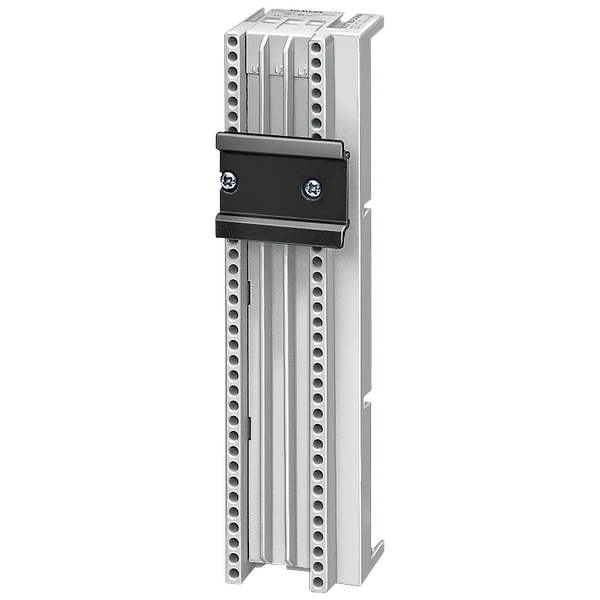

Busbar system, busbar center-to-center spacing 60 mm, device holder, width: 4...

Laos: Ei Hankija laovaru: Jah Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
20,77 € tk kohta
Hind kehtib kuni 01.10.25
EAN: 4011209285163
MPN: 8US1250-5AM00
Karp: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi Busbar system Busbar center-to-center spacing 60 mm device holder, Width: 45 mm Bar thickness: 5.1
Bränd Siemens
Kategooriad Busbar Systems and Accessories
Päritoluriik DE
Harmoneeritud süsteemi kood 8538 9099 00
Tunnusvool In 0 A

Pakendamise üksikasjad

Pakkimistase 1 4011209285163

Muud tehnilised andmed

Lati kaugus 60 mm
Maksimaalne kogumislati paksus 0 mm
Lati laius 45 mm
Lati laius 0 mm
Lati vähim paksus 5 mm

Kirjeldus
