Bollard luminaires Skeo Q Reflector Anthracite ET 6W 700lm 70 asymmetric medium wide (AM) IP65 IK07 5 SDCM 7021940

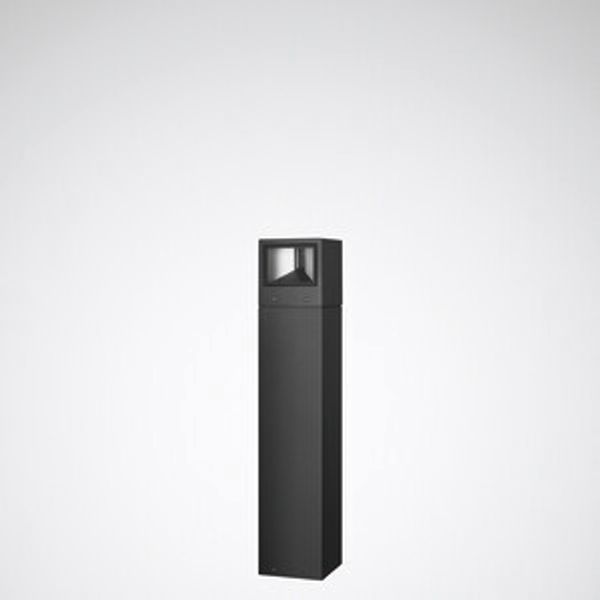

LED bollard luminaire with square cross-section. With two light emission apertures. Fixing on base or mounting via underground support. Optical system implemented as reflector technology. With asymmetric medium wide light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 700 lm, connected load 6 W, maximum luminous efficiency of luminaire 117 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire housing of aluminium profile, end elements of die-cast aluminium. With housing screws of stainless steel. Luminaire housing highly weather resistant, powder-coated. Colour anthracite, similar to DB 703. Sea weather-suitable coating on request. On request, the luminaire body can be produced without added cost in the following colours: Black textured (Akzo Nobel 8118669, similar to RAL 9005), White textured (Akzo Nobel 8158870, similar to RAL 9016), Grey textured (Akzo Nobel 8129595, similar to RAL 9006). Other colour variants are available for an additional charge in accordance with the RAL or DB colour code. Dimensions (L x W): 100 mm x 100 mm, luminaire height 500 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK07. Windage area fw 0,050 m2. Weight: 2,3 kg. With electronic control gear unit, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The LED system with control gear unit is suitable for operation on direct voltage supply grids. Surge voltage resistance Differential Mode / Common Mode: 1 kV / 2 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
