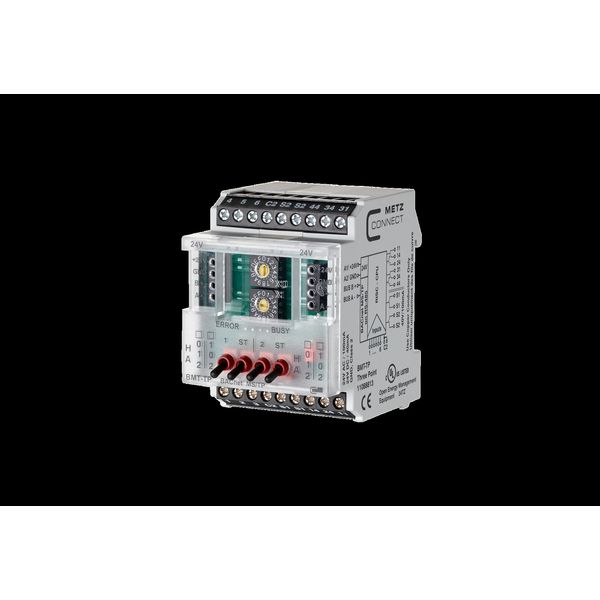

BMT-TP BACnet MS/TP
Ainult telli
Hind (ilma KM-ta):
456,70 €
EAN: 4250184158899
MPN: 11088813
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | BMT-TP BACnet MS/TP |
| Bränd | METZ CONNECT |
| Kategooriad |
Bus System Devices (KNX/Modbus)
|
| Päritoluriik* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 8517 6200 00 |
| Paigaldusviis | DRA (DIN liistule) |
| Voolu liik | AC |
| Tunnus-talitluspinge | 24 V |
| Siinisüsteem KNX | No |
| Raadiosageduslik siinisüsteem | No |
| Siinisüsteem Powernet | No |
| Siiniühendusega | Yes |
| Ribikardina väljundite suurim arv | 2 |
| Laius mooduli arvudes | 3 |
| Kaugtalitlus on võimalik | No |
| Ethernet | No |
| Vajalik on väline signaalipinge | No |
| Muud siinisüsteemid | Muul viisil |
| Siinisüsteem LON | No |
| C-koormus | No |
| LED juhtimine | No |
| Eri faaside ühendamine | No |
| Lokaaljuhtimine/käsijuhtimine | No |
| Lülitusfunktsiooniga | Yes |
| Kaitseaste (IP) | IP20 |
| LED näidikuga | Yes |
| Siinisüsteem KNX radio | No |
Pakendamise üksikasjad
| Pakkimistase 1 | 4250184158899, 4250184158899 |
Kirjeldus
The BACnet MS/TP three-point module with 6 digital inputs, 2 two-level relay outputs and 2 digital outputs was developed for decentralized switching tasks. It is suitable for switching, for example, multi-level pumps and fans or louvers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client. The input terminals 1 to 6 are wired with the C2 terminals on two poles to potential-free switches or contacts. The module has a manual control for the outputs. The module address and the baud rate are set by means of two address switches on the front. Suitable for decentralized mounting in serial sub-distributor.Connection with screw type terminal blocks
