BMT-Multi I/O BACnet MS/TP
Ainult telli
Hind (ilma KM-ta):
778,55 €
EAN: 4251394600901
MPN: 11089313
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | BMT-Multi I/O BACnet MS/TP |
| Bränd | METZ CONNECT |
| Kategooriad |
Bus System Devices (KNX/Modbus)
|
| Päritoluriik* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 8517 6200 00 |
| Paigaldusviis | DRA (DIN liistule) |
| Tunnus-talitluspinge | 24 V |
| Siinisüsteem KNX | No |
| Raadiosageduslik siinisüsteem | No |
| Siinisüsteem Powernet | No |
| Siiniühendusega | Yes |
| Kaugtalitlus on võimalik | No |
| Ethernet | No |
| Vajalik on väline signaalipinge | No |
| Muud siinisüsteemid | Muul viisil |
| Siinisüsteem LON | No |
| C-koormus | No |
| LED juhtimine | No |
| Eri faaside ühendamine | No |
| Lokaaljuhtimine/käsijuhtimine | No |
| Lülitusfunktsiooniga | No |
| Kaitseaste (IP) | IP20 |
| LED näidikuga | Yes |
| Siinisüsteem KNX radio | No |
Pakendamise üksikasjad
| Pakkimistase 1 | 4251394600901, 4251394600901 |
Kirjeldus

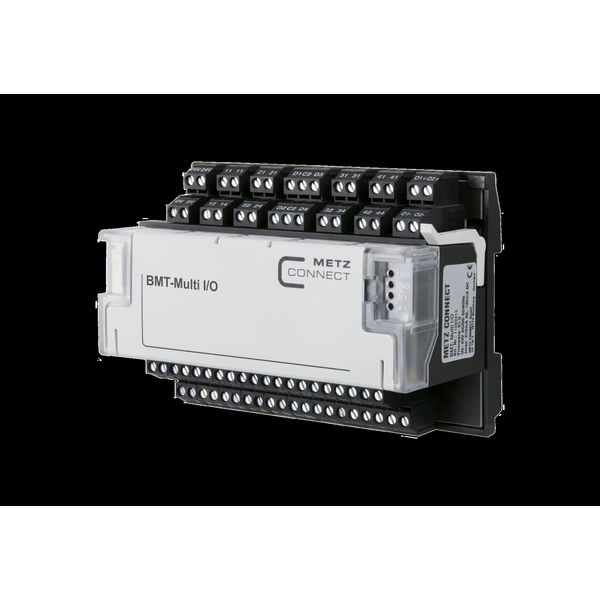

The BACnet module BMT-Multi I/0 is a compact and rapidly to install solution to connect digital and analog signals from the actor and sensor level directly to a control unit in building automation via BACnet MS/TP protocol. 29 I/Os, some of them are configurable, are available for different tasks. The inputs and outputs can be controlled and scanned by standard objects via a BACnet Client. Module address and bit rate are set with two rotary switches on the front or by software. The relays K1 to K4 are equipped with a manual control and allow manual intervention. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
