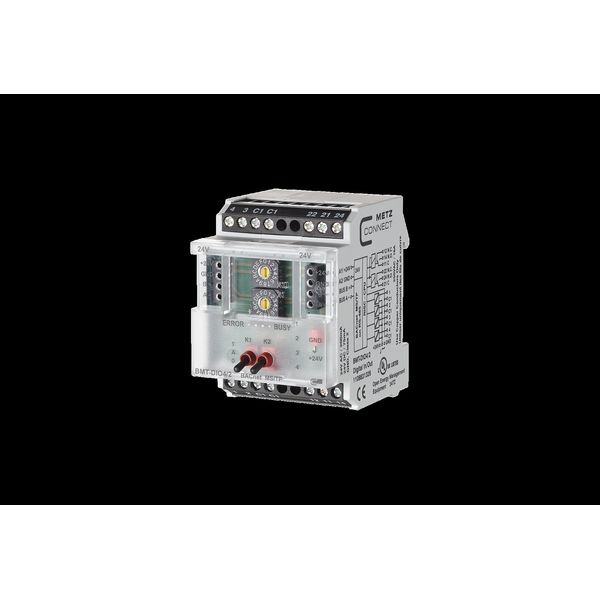

BMT-DIO4/2 BACnet MS/TP
Ainult telli
Hind (ilma KM-ta):
290,14 €
EAN: 4250184138723
MPN: 1108831326
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | BMT-DIO4/2 BACnet MS/TP |
| Bränd | METZ CONNECT |
| Kategooriad |
Bus System Devices (KNX/Modbus)
|
| Päritoluriik | DE |
| Harmoneeritud süsteemi kood | 8517 6200 00 |
| Paigaldusviis | DRA (DIN liistule) |
| Sisendite arv | 4 |
| Tunnus-talitluspinge | 24 V |
| Siinisüsteem KNX | No |
| Raadiosageduslik siinisüsteem | No |
| Siinisüsteem Powernet | No |
| Siiniühendusega | Yes |
| Suurim lülituskontaktide arv | 2 |
| Laius mooduli arvudes | 3 |
| Kaugtalitlus on võimalik | No |
| Ethernet | No |
| Vajalik on väline signaalipinge | No |
| Muud siinisüsteemid | Muul viisil |
| Siinisüsteem LON | No |
| C-koormus | No |
| LED juhtimine | Yes |
| Eri faaside ühendamine | No |
| Lokaaljuhtimine/käsijuhtimine | Yes |
| Lülitusfunktsiooniga | Yes |
| Kaitseaste (IP) | IP20 |
| LED näidikuga | Yes |
| Siinisüsteem KNX radio | No |
Pakendamise üksikasjad
| Pakkimistase 1 | 4250184138723, 4250184138723 |
Kirjeldus
The BACnet MS/TP module with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks. It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers. It can also be used to control 2 motorized fire dampers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs can be used as contact or voltage inputs. The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client. The module address and the baud rate are set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.Connection with screw type terminal blocks
