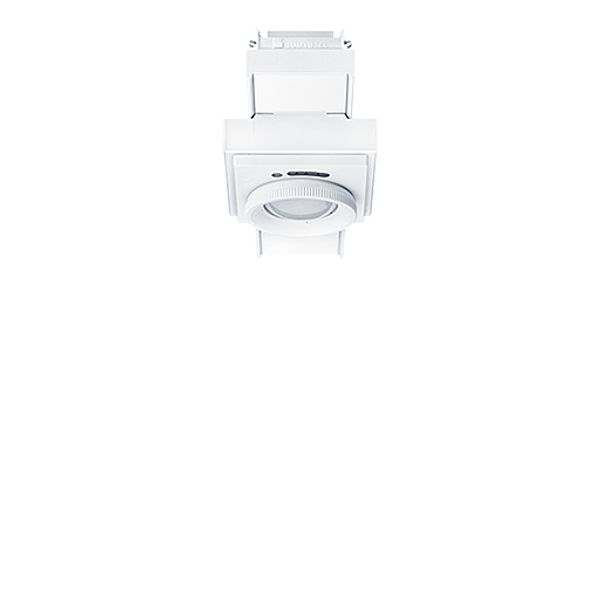

basicDIM ILD G2 HC TEC-GP WH - TEC-GP with sensor and DALI control unit image 1
basicDIM ILD G2 HC TEC-GP WH - TEC-GP with sensor and DALI control unit image 2
basicDIM ILD G2 HC TEC-GP WH - TEC-GP with sensor and DALI control unit thumbnail 1
basicDIM ILD G2 HC TEC-GP WH - TEC-GP with sensor and DALI control unit thumbnail 2
Zumtobel

TEC-GP with sensor and DALI control unit

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
589,63 €
Hind kehtib kuni 24.12.25
EAN: 9010757198036
MPN: 22172576
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi basicDIM ILD G2 HC TEC-GP WH - TEC-GP with sensor and DALI control unit
Bränd Zumtobel
Kategooriad Valgusti tarvikud
Päritoluriik AT
Harmoneeritud süsteemi kood 9405 9900 00
Lisatarviku liik Liikumisandur

Pakendamise üksikasjad

Pakkimistase 1 9010757198036, 9010757198036

Allalaadimised

REACH süvalink CE DOC deklaratsioon (CE vastavusdeklaratsioon) RoHS deklaratsioon Müügibrošüür

Kirjeldus

The TECTON module with integrated basicDIM ILG G2 Wireless Sensor (HighBay) and DALI control unit is ideal for industry, logistics, offices and education. The sheet steel adapter, pre-painted in polyester lacquer finish in white, enables tool-free installation on the mounting rail via two side levers. The basicDIM ILD G2 HC TEC-GP set includes a PIR sensor for heights of 8-16 m, an integrated DALI control module and 2 DALI bus supplies with 126 mA free power for additional sensors and luminaires. The module controls DALI luminaires via a broadcast signal without individual addressing. It can be expanded with up to 8 additional sensors (MSENS TEC-GP) which contribute to motion detection. The light control is exclusively via the light sensor of the basicDIM ILD G2 module. Calculate 9 mA per additional sensor and 2 mA per DALI luminaire. With a maximum of 8 additional sensors, 27 luminaires can still be controlled. The system features motion detection, daylight-dependent light control and predefined time lags as standard. An optional IR remote control (article no. 28003484) enables all the main parameters to be set. Further details can be found in the data sheet for the basicDIM ILD G2 sensor (article no. 28002234). The module must not be combined with other DALI control units or basicDIM ILD G2 modules. Temperature range 0°C to +50°C; dimensions: 248 x 60 x 16 mm; weight: 0.55 kg.
