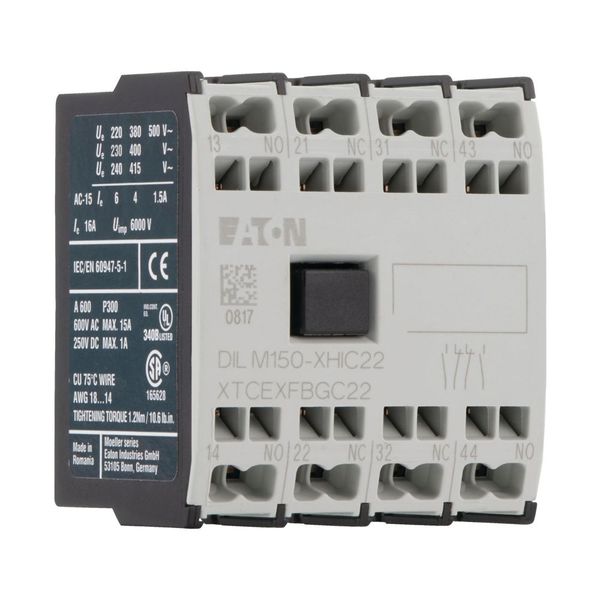

Auxiliary contact module, 4 pole, Ith= 16 A, 2 N/O, 2 NC, Front fixing, Spring-loaded terminals, DILMC40 - DILMC150
Müüja laos
Minimaalne tellimuse kogus: 5
Hind (ilma KM-ta):
10,45 €
Vahesumma: 52,25 €
MOQ: 5
EAN: 4015082780463
MPN: 278046
Pakend: 1
Karp: 5
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | DILM150-XHIC22 Auxiliary contact module, 4 pole, Ith= 16 A, 2 N/O, 2 NC, Front fixing, Spring-loaded terminals, DILMC40 - DILMC150 |
| Bränd | EATON |
| Kategooriad |
Signal & Control Modules
|
| Päritoluriik | RO |
| Harmoneeritud süsteemi kood | 8536 5080 00 |
| Paigaldusviis | Eesmine kinnitus |
| Mudel | Ülapaigaldus |
| Tunnus-talitlusvool Ie, AC-15, 230 V | 6 A |
| Elektriühenduse liik | Vedruklamber ühendus |
| Normaalselt suletud kontaktide arv | 2 |
| Normaalselt avatud kontaktide arv | 2 |
| Ümberlülituskontaktide arv | 0 |
Pakendamise üksikasjad
| Pakkimistase 1 | 4015082780463 |
| Pakkimistase 2 | 4015081830527 |
Muud tehnilised andmed
| Lambipesa | Puudub |
| Rikkesignaali lülitite arv | 0 |
Kirjeldus
Auxiliary contact module, with interlocked opposing contacts, Function: for standard applications, 4 pole, Connection technique: Spring-loaded terminals, Rated operational current AC-15 220 V 230 V 240 V: Ie= 6 A, Rated operational current AC-15 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Mounting type: Front fixing, For use with: DILMC40…, DILMC50…, DILMC65…, DILMC80…, DILMC95…, DILMC115…, DILMC150…, Type: Front mounting auxiliary contact, Instructions: Interlocked opposing contacts according to IEC/EN 60947-5-1 Appendix L, inside the auxiliary contact module , Auxiliary contacts used as mirror contacts according to IEC/EN 60947-4-1 Appendix F (not N/C late open)
