LED spotlight
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
1 679,97 €
EAN: 4053167399476
MPN: 60715396
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | ARC ZF L 800-927-65 DIM 3CU SSPS AZ - LED spotlight |
| Bränd | Zumtobel |
| Kategooriad |
Raudteelaternad ja tarvikud
|
| Päritoluriik | DE |
| Harmoneeritud süsteemi kood | 9405 1190 00 |
| Värviesitusindeks | 90-100 (klass 1A) |

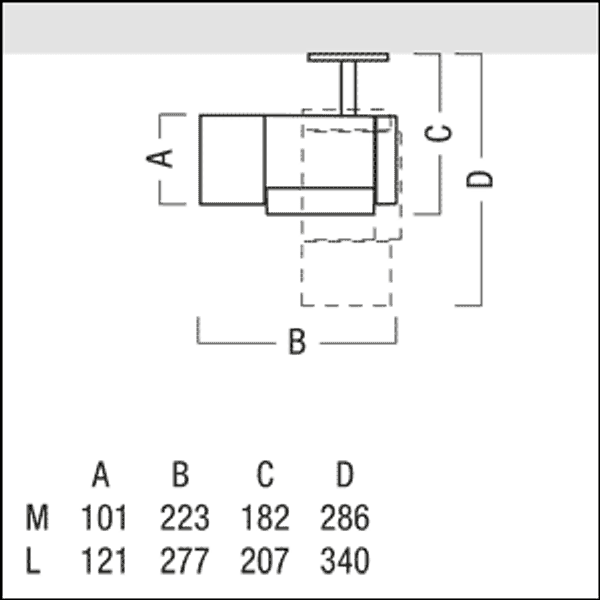

| Kõrgus/sügavus | 340 mm |
| Lamp | LED, mittevahetatav |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP20 |
| Valgusvoo nurk | Kitsas valgusvoo nurk 10-20° |
| Värvustemperatuur | 3000 K |
| Süsteemi võimsus | 20 W |
| Efektiivne valgusvoog | 700 lm |
| Valgusti tõhusus | 35 lm/W |
Pakendamise üksikasjad
| Pakkimistase 1 | 4053167399476, 4053167399476 |
Muud tehnilised andmed
| Kaitseklass | I |
| Välisläbimõõt | 121 mm |
| Peegeldi | Puudub |
| Lambipesa | Puudub |
| Juhi ristlõige | 2.5 mm² |
| Ühenduse liik | Busbar adapter |
| Kere värvus | Antratsiit |
| Pinge liik | AC |
| Liikumisanduriga | No |
| Juhtliidese tüüp | LED-valgusti voolujuhtimisega seadis |
| Valgustusanduriga | No |
| Sobib ripp-paigalduseks | No |
| Kere materjal | Alumiinium |
| Valgusjaotus | Otsene |
| Valgusjaotus | Sümmeetriline |
| Kattematerjal | Klaas, struktuurne |
| Lambiga | Yes |
| Tulekindlus "D" | No |
| Sisseehitatud isoleeritud kate, tulekindlus "F koos kattega" | Yes |
| Sobib vastavalt lampide arvule | 1 |
| Sobib sisseehitatud paigalduseks | No |
| Sisaldab juhtseadist | Yes |
| Kuvariga töökohale | Yes |
| Sobib pindpaigalduseks | Yes |
| Ühendatava juhi ristlõige, | 1.5-2.5 mm² |
| Valguse värvus | Valge |
| Seadistatavus | Pööratav ja kallutatav |
| Sobib paigaldamiseks jalamile/põrandale | No |
| Sobib valgustussiinile | Yes |
| Konstantse valgusvoo juhtimine | No |
| Saadaval on rakenduste IFTTT sobitustugi | No |
| Valgusvoog | 14 lm |
| Juhtmestiku liik | Ending |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Värvi konsistents (McAdam'i ellips) | SDCM2 |
| Summaarne harmooniline moonutus | 20.22 |
| Süttivuskatse IEC 60695-2-11järgi | 650 °C - 30 s |
| Reguleerimine, 0-10 V | No |
| Reguleerimine, 1-10 V | No |
| Reguleerimine, DALI | No |
| Reguleerimine, DMX | No |
| Reguleerimine potentsiomeetriga, (sisseehitatud) | Yes |
| Reguleerimine, LineSwitch | No |
| Reguleerimine, tootja süsteemi | Yes |
| Reguleerimine, peaahela pinge modulatsiooni | No |
| Reguleerimine, faasi väljalülitamine | No |
| Reguleerimine, faasi sisselülitamine | No |
| Reguleerimine, programmeeritav | No |
| Reguleerimine; RF (raadiaosagedus) | No |
| Reguleerimine, siinuslaine redutseerimine | No |
| Reguleerimine, puutetundlik | No |
| Reguleerimine, Zigbee | No |
| Reguleerimine surunupuga | No |
| Reguleerimisfunktsioon puudub | No |
| Reguleerimine, DSI (digital signal interface) | No |
| Unified Glare Ratio (UGR) | 1 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 43 |
| Max. number of luminaires per miniature circuit breaker B16 | 25 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | Astmevaba variaator |
| Luminous flux adjustable | Astmevaba variaator |
| Beam angle adjustable | Ei |
| Exchangeable control gear | No |
| Sobib lakke paigaldamiseks | Yes |
| Võimsustegur | 0.95 |
Allalaadimised
Kirjeldus

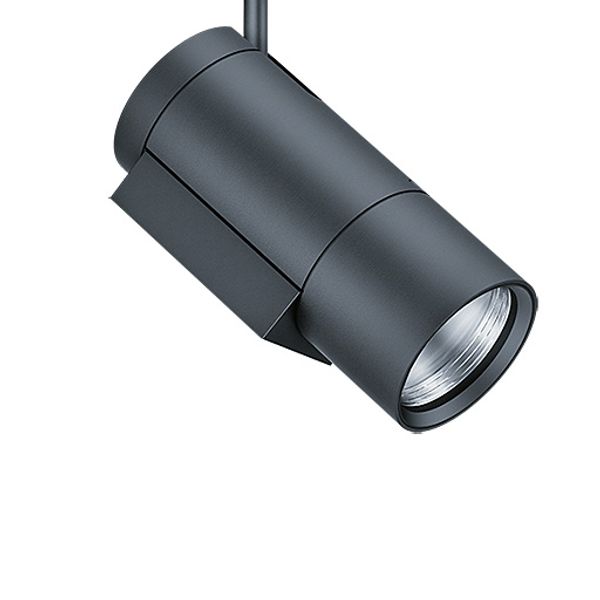

LED spotlight, "Zoom Focus tunableWhite"; with high-quality, flexible precision lens system for complete beam shaping (combination of zoom and focus); high quality 3-channel tunableWhite technology for excellent colour contrast; optimised for high-quality accent lighting in museums, exhibition spaces and art galleries up to 7m ceiling height; 150-800lux on the object at a distance of 6m; Luminaire with 3-phase adapter (for 3-phase/L3+DALI track); Luminaire with dimming directly over luminaire; Illuminance dimming 5-100 %; lamp(s): LED800-927-65, Luminaire or spotlight with SUPERSOFT SPOT distribution characteristic (Fix attachment); stepwise adjustment of the zoom focus (Superspot soft - hard) possible in the front ring, predefined grid; contour is adjustable from sharp to soft; Colour rendering Ra > 92, colour temperature (tunable) 2700-6500 K, settable, ; Chromaticity tolerance (initial MacAdam): 2; spectral range: 400-780nm; blue peak at 455nm; UVA = 0.3 µW/lm at λ≤ 400nm; Luminaire luminous flux: 700 lm, Luminaire efficacy: 35 lm/W; service life: 50000h at 90% luminous flux; flicker-free hybrid dimming 0.5-10%, Luminaire input power: 20 W; mains voltage: 220-240V/ 50/60Hz; recessed pivot; spotlight can be rotated 365° and swivelled 90°; fixing of axes of movement via Allen key; high-quality precision lens system with low stray light component and high contrast on the object (uniform light intensity within the light cone); excellent glare limitation via the lens system; sustainable product design due to integrated control unit in the spotlight housing; innovative heat management due to passive cooling, resulting in COOL TOUCH function; front ring for optional accommodation of Oval lens, must be ordered separately; "Fix attachment" can be exchanged for "Zoom Focus" without tools, see Accessories; see the website for detailed photometric zoom data and optical radiation characteristics for museum objects (CIE157:2004); housing made of die-cast aluminium; surface: microtextured paint anthracite; lenses made of glass or acrylic glass; dimensions: Ø121x340 mm; weight: 2.7 kg;
, ,
Note: wall mounting only permitted with Zumtobel 3-phase universal adapter and in conjunction with wall-mounting bracket (please order separately); must be installed in ceiling for use as point outlets.
