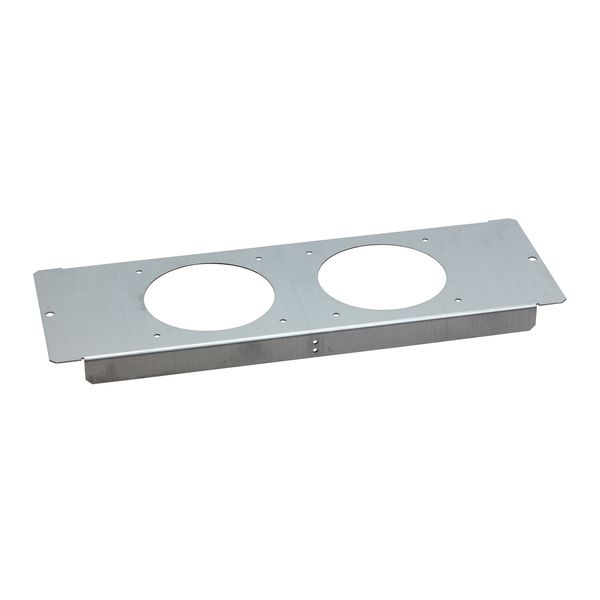

Actassi - ventilation plate with 2 cut-outs with fan
Ainult telli
Hind (ilma KM-ta):
238,42 €
EAN: 3606480146305
MPN: NSYECVT2V440
Pakend: 1
Kaubaalus: 50
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | Actassi - ventilation plate with 2 cut-outs with fan |
| Bränd | Schneider Electric |
| Kategooriad |
Cabinet Cooling and Heating
|
| Päritoluriik* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Kaitseaste (IP) | Muul viisil |
| Mahuline puhumine, vabapuhumine | 170 m³/h |
| Talitluspinge, AC 50 Hz | 220 V |
| Talitluspinge, AC 60 Hz | 220 V |
Pakendamise üksikasjad
| Pakkimistase 1 | 3606480146305 |
| Pakkimistase 2 | 3606480146305 |
Muud tehnilised andmed
| Paigaldusviis | Kruviühendus |
| Värvus | Must |
| Laius | 420 mm |
| Kõrgus | 0 mm |
| Sügavus | 149 mm |
| RAL-number | 9005 |
| Pinge liik | AC |
| Sobib paigaldamiseks 19 tollisele karkassile | No |
| Number of fans | 2 |
| EMC-variant | No |
| Kaitsekattega | Yes |
| Koos filtriga | No |
| Tunnusvõimsus | 22 W |
| Lae ventilaator | Yes |
| Sisselibistatav ventilaator | No |
| Õhuringlusega | No |
| Seina sisseehitatud | No |
| Müratase | 34 dB(A) |
| Kaitseaste (NEMA) | Muul viisil |
Allalaadimised
Kirjeldus

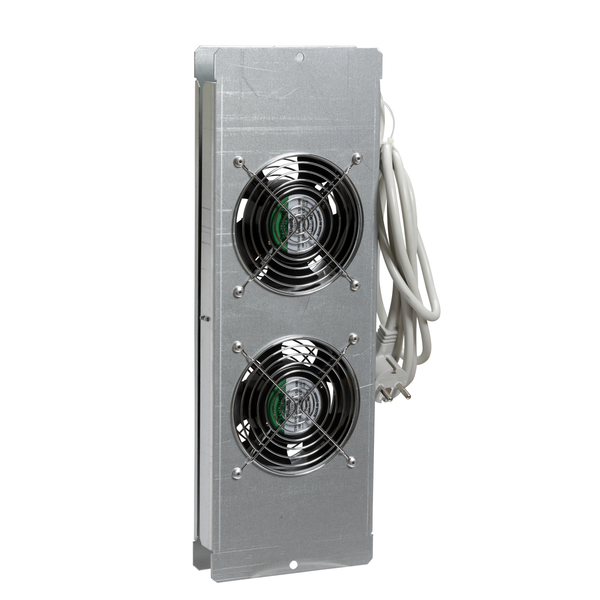

This product is a blanking plate with fans to be fixed on the the internal surface of the base or roof or on a 6U knock-out panel of the reduced rear door. Equipped with 2 fans, free flow of 170 m3/h each, 220 V-50/60 Hz, installed wired with terminal board. A 3-m power cord is supplied.
