KA4210NA14 W Feld mit Netzschutz AF116
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
10 586,27 €
EAN: 4011617357919
MPN: 2CPX035791R9999
Karp: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | KA4210NA14 Measurement and metering transformer board for EEG, Field width: 2, Rows: 0, 1350 mm x 500 mm x 160 mm, IP2XC |
| Bränd | ABB |
| Kategooriad |
Meter Boxes
|
| Harmoneeritud süsteemi kood | 8537 1098 00 |
| Koos juhtmestusega | Yes |
| Mõõtekappide arv | 1 |
| Alumine ühendusruum | 5-se kogumislatiga |
| Kaitseaste (IP) | IP2XC |
| Peaahela lüliti tunnusvool | 144 A |
Pakendamise üksikasjad
| Pakkimistase 1 | 4011617357919 |
Muud tehnilised andmed
| Värvus | Hall |
| Laius | 500 mm |
| Mudel | 2-korruseline |
| Kõrgus | 1350 mm |
| RAL-number | 7035 |
| Koos montaažiplaadiga | No |
| Ühendusvahe | 300 mm |
| Laius mooduli arvudes | 24 |
| TSG-paneele | 1 |
| Jaotusridade arv | 0 |
| Katte kuju | Suletud eelstantsimisega |
Allalaadimised
Kirjeldus

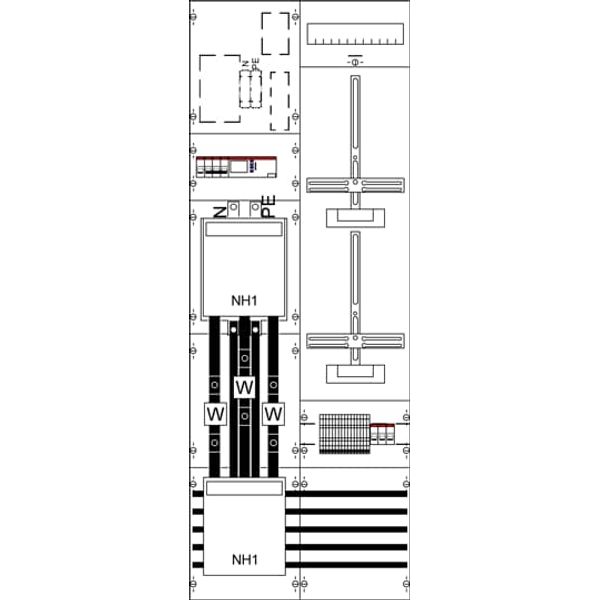

Measurement and metering transformer board for EEG, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 115 A, Rated current of the assembly of switchgear and controlgear InA 115 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, primary wiring L1-L3 Cu-Busbar 30 x 5 und 25 x 5, PE+N Cu-Busbar 20 x 5 mm, Incomer grid connected to busbar Cu 12 x 5 mm, PV-connected to contactor, PE connected to terminal 50 qmm, complete with distribution and control wiring, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
