KA4282 Mess-u.Wandlerfeld H5/B2
Ainult telli
Hind (ilma KM-ta):
14 177,13 €
EAN: 4011617350910
MPN: 2CPX035091R9999
Karp: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | KA4282 Measurement and metering transformer board, Field width: 3, Rows: 0, 1350 mm x 750 mm x 160 mm, IP2XC |
| Bränd | ABB |
| Kategooriad |
Meter Boxes
|
| Harmoneeritud süsteemi kood | 8537 1098 00 |
| Koos juhtmestusega | Yes |
| Mõõtekappide arv | 1 |
| Alumine ühendusruum | 5-se kogumislatiga |
| Kaitseaste (IP) | IP2XC |
| Peaahela lüliti tunnusvool | 250 A |
Pakendamise üksikasjad
| Pakkimistase 1 | 4011617350910 |
Muud tehnilised andmed
| Värvus | Hall |
| Laius | 750 mm |
| Mudel | 2-korruseline |
| Kõrgus | 1350 mm |
| RAL-number | 7035 |
| Koos montaažiplaadiga | No |
| Ühendusvahe | 300 mm |
| Laius mooduli arvudes | 36 |
| TSG-paneele | 1 |
| Jaotusridade arv | 0 |
| Katte kuju | Suletud eelstantsimisega |
Allalaadimised
Kirjeldus

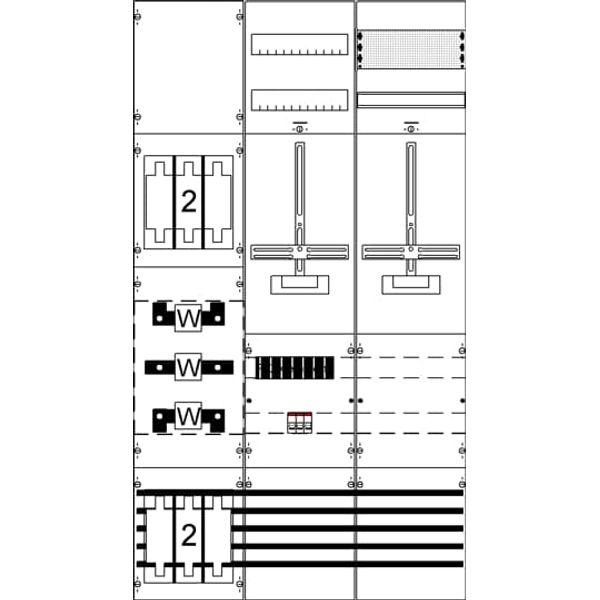

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 750 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of SG spaces 1, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Bottompart 1 x 3 x NH2/400 A with connection screws, primary wiring 120 qmm, Connection N+PE (M12), Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035
