KA4239 Mess- und Wandlerfeld H5/B2 vorverdrahtet mit Zählerkreuz
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
4 702,79 €
EAN: 4011617330400
MPN: 2CPX033040R9999
Karp: 1
Kaubaalus: 10
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | KA4239 Measurement and metering transformer board, Field width: 2, Rows: 0, 1350 mm x 500 mm x 160 mm, IP2XC |
| Bränd | ABB |
| Kategooriad |
Meter Boxes
|
| Harmoneeritud süsteemi kood | 8537 1098 00 |
| Koos juhtmestusega | Yes |
| Mõõtekappide arv | 1 |
| Alumine ühendusruum | 5-se kogumislatiga |
| Kaitseaste (IP) | IP2XC |
| Peaahela lüliti tunnusvool | 150 A |
Pakendamise üksikasjad
| Pakkimistase 1 | 4011617330400 |
| Pakkimistase 2 | 4011617330400 |
Muud tehnilised andmed
| Värvus | Hall |
| Laius | 500 mm |
| Mudel | 2-korruseline |
| Kõrgus | 1350 mm |
| RAL-number | 7035 |
| Koos montaažiplaadiga | No |
| Ühendusvahe | 300 mm |
| Laius mooduli arvudes | 24 |
| TSG-paneele | 1 |
| Jaotusridade arv | 0 |
| Katte kuju | Suletud eelstantsimisega |
Allalaadimised
Kirjeldus

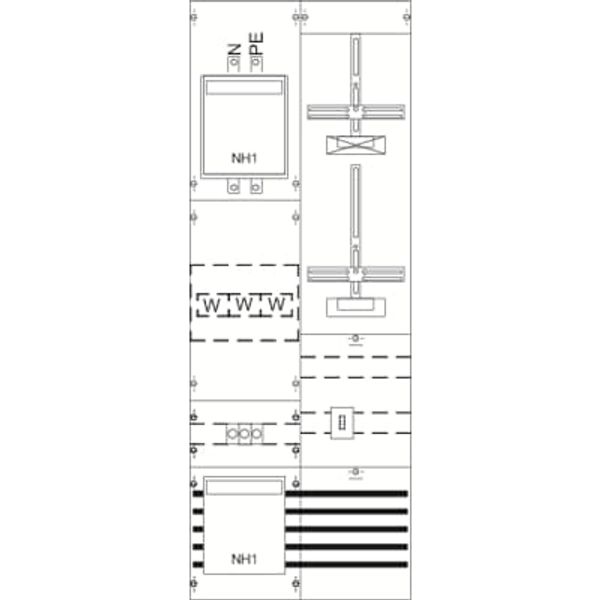

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, TAE terminal box 1, Secondary wiring current from test terminal to metering device, Secondary wiring voltage up to meter, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring L1-L3 120 qmm, N+PE 120 qmm, Connection N+PE (M8), Note: test terminal can be orderded from NB NRM, busbar terminals te ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
