KS4211 Mess- und Wandlerschrank, Aufputz mit Zählerkreuz, A26
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
4 938,26 €
EAN: 4011617329480
MPN: 2CPX032948R9999
Karp: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | KS4211 Measurement and metering transformer cabinet, Field width: 2, Rows: 0, 950 mm x 550 mm x 215 mm, Isolated (Class II), IP31 |
| Bränd | ABB |
| Kategooriad |
Meter Boxes
|
| Harmoneeritud süsteemi kood | 8537 1098 00 |
| Paigaldusviis | Pinnapealne/osaliselt süvistatav |
| Tunnusvool | 160 A |
| Mõõtekappide arv | 1 |
| Alumine ühendusruum | 5-se kogumislatiga |
| Kaitseaste (IP) | IP31 |
Pakendamise üksikasjad
| Pakkimistase 1 | 4011617329480 |
Muud tehnilised andmed
| Laius | 550 mm |
| Mudel | 1-korruseline |
| Kõrgus | 950 mm |
| Sügavus | 215 mm |
| Koos montaažiplaadiga | No |
| Sisseehitussügavus | 215 mm |
| Väljade arv | 2 |
| Kõrgus | 950 mm |
| Laius | 550 mm |
| Materjal | Terasplaat |
| TSG-paneele | 0 |
| Jaotusridade arv | 0 |
Allalaadimised
Kirjeldus

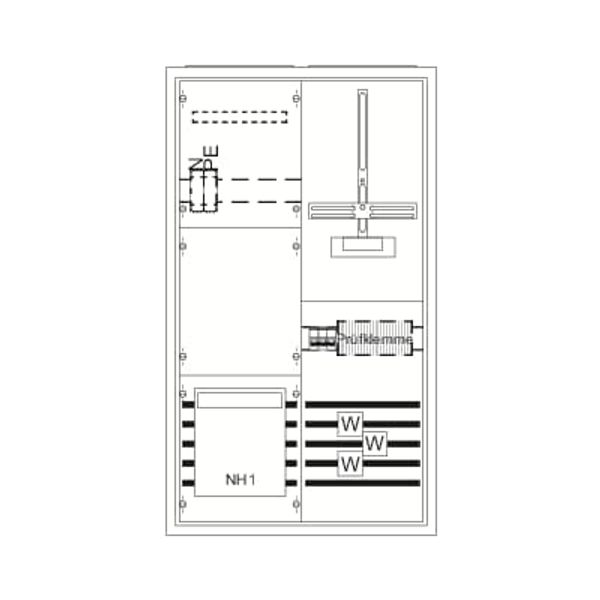

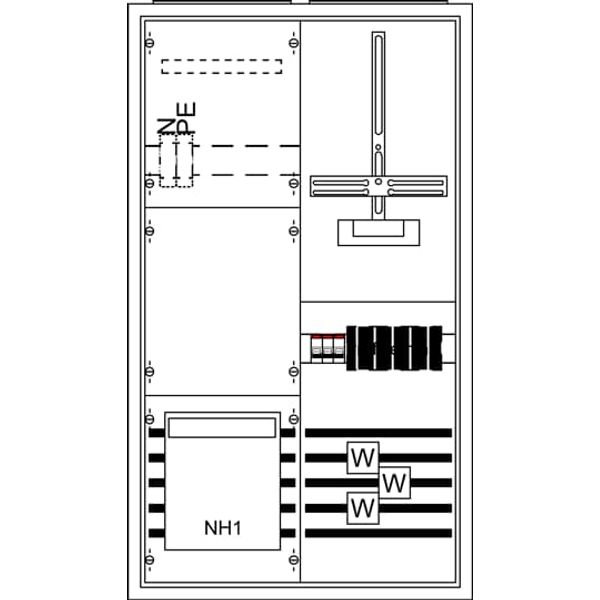

Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, for the internal use, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 128 A, Rated current of the assembly of switchgear and controlgear InA 128 A, Powder-coated, in RAL 9016, enclosure out of Sheet steel / Plastic, single-leaf door, dimensions in mm (H x W x D): 950 x 550 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, primary wiring N+PE 70 qmm, N+PE Connection N+PE 95qmm, Note: Incomer right above incomer housing on the side e.g. EK230, busbar terminals to ordered seperately, Grid unit 6 GU, Overall height 2, panel width 2, Space units 144, covers out of Plastic, Quick sealable connection, RAL 7035
