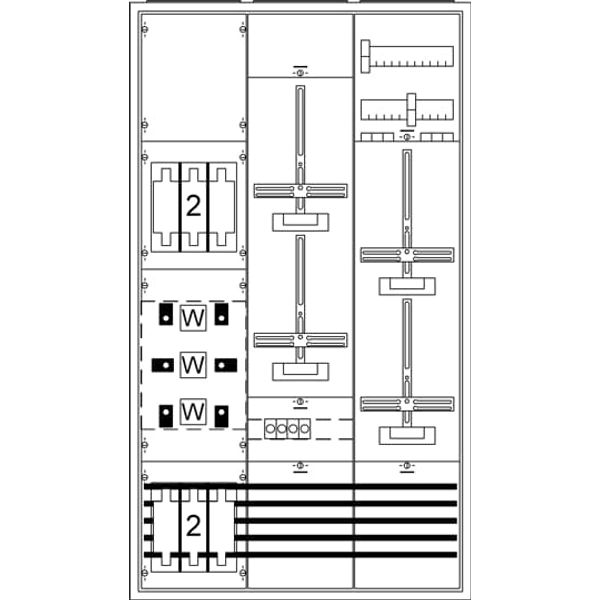

KS4206 Mess- und Wandlerschrank, Aufputz mit Zählerkreuz
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
5 594,70 €
EAN: 4011617327820
MPN: 2CPX032782R9999
Karp: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | KS4206 Measurement and metering transformer cabinet, Field width: 3, Rows: 0, 1350 mm x 800 mm x 215 mm, Isolated (Class II), IP31 |
| Bränd | ABB |
| Kategooriad |
Meter Boxes
|
| Harmoneeritud süsteemi kood | 8537 1098 00 |
| Paigaldusviis | Pinnapealne/osaliselt süvistatav |
| Tunnusvool | 250 A |
| Mõõtekappide arv | 3 |
| Alumine ühendusruum | 5-se kogumislatiga |
| Kaitseaste (IP) | IP31 |
Pakendamise üksikasjad
| Pakkimistase 1 | 4011617327820 |
Muud tehnilised andmed
| Laius | 800 mm |
| Mudel | 2-korruseline |
| Kõrgus | 1350 mm |
| Sügavus | 215 mm |
| Koos montaažiplaadiga | No |
| Sisseehitussügavus | 215 mm |
| Väljade arv | 3 |
| Kõrgus | 1350 mm |
| Laius | 800 mm |
| Materjal | Terasplaat |
| TSG-paneele | 1 |
| Jaotusridade arv | 0 |
Allalaadimised
Kirjeldus
Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, Expansion option: Lateral, for the internal use, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, Powder-coated, in RAL 9016, enclosure out of Sheet steel / Plastic, double door, dimensions in mm (H x W x D): 1350 x 800 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of meter spaces single tariff 2, Number of SG spaces 1, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Metering wiring, voltage path Fuse base element D01/3-pole and D01/1-pole, Secondary wiring current Wiring set H07V-U, Secondary wiring voltage Wiring set H07V-U, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Bottompart 1 x 3 x NH2/400 A with connection screws, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035
