KS4218 Mess- und Wandlerschrank, Aufputz Schutzart IP31
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
3 138,33 €
EAN: 4011617326373
MPN: 2CPX032637R9999
Karp: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | KS4218 Measurement and metering transformer cabinet, Field width: 3, Rows: 0, 1250 mm x 800 mm x 215 mm, Isolated (Class II), IP31 |
| Bränd | ABB |
| Kategooriad |
Meter Boxes
|
| Harmoneeritud süsteemi kood | 8537 1098 00 |
| Paigaldusviis | Pinnapealne/osaliselt süvistatav |
| Tunnusvool | 250 A |
| Mõõtekappide arv | 0 |
| Alumine ühendusruum | 5-se kogumislatiga |
| Kaitseaste (IP) | IP31 |
Pakendamise üksikasjad
| Pakkimistase 1 | 4011617326373 |
Muud tehnilised andmed
| Laius | 800 mm |
| Mudel | 1-korruseline |
| Kõrgus | 1250 mm |
| Sügavus | 215 mm |
| Koos montaažiplaadiga | No |
| Sisseehitussügavus | 215 mm |
| Väljade arv | 3 |
| Kõrgus | 1250 mm |
| Laius | 800 mm |
| Materjal | Terasplaat |
| TSG-paneele | 0 |
| Jaotusridade arv | 0 |
Allalaadimised
Kirjeldus

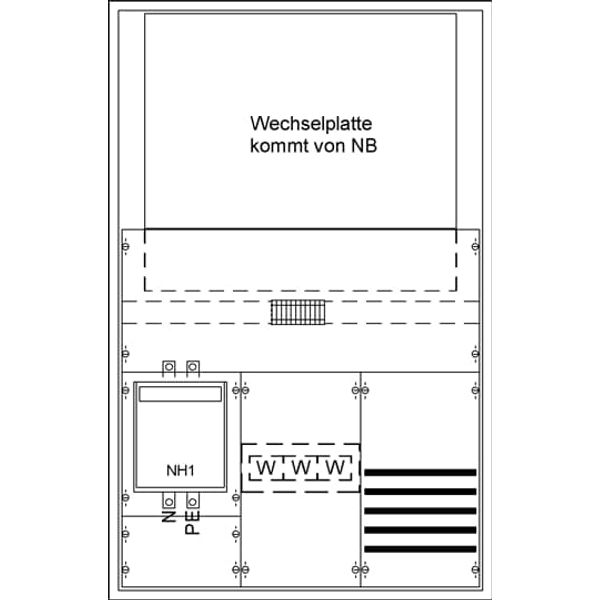

Measurement and metering transformer cabinet, series A, fully assembled cabinet, for the internal use, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 222 A, Powder-coated, in RAL 9016, enclosure out of Sheet steel / Plastic, double door, dimensions in mm (H x W x D): 1250 x 800 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, TAE terminal box 1, net side compartment, meter space: with busbar, Meter replacement plate metering transformer conversion board size 1/2, 2 or 3 (KF421, KF414, KF 423), parting point before the current transformer Fuse switch disconnector NH1/250 A, current transformer range Mounting plate for Single-CT with CT-rail, primary wiring 120 qmm, Note: may be required connection set with busbar, to be orderd seperately, Grid unit 8 GU, Overall height 4, panel width 3, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035
