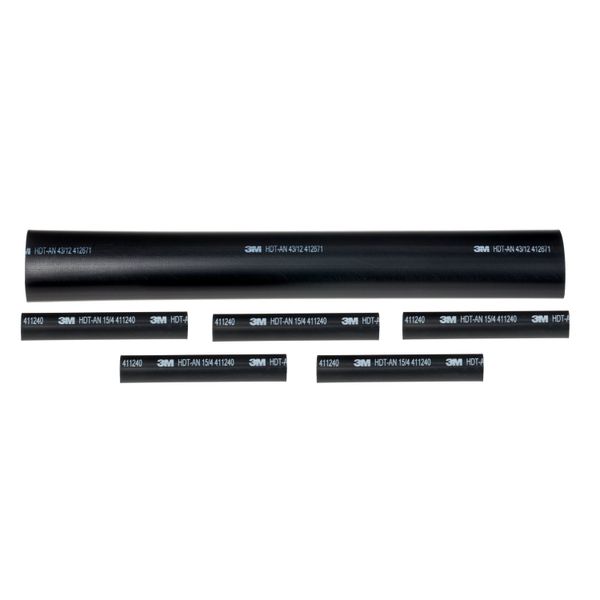

3M™ 91-AH Heat Shrink Inline Splice Sleeve Kit, 22N image 1
3M

3M™ 91-AH Heat Shrink Inline Splice Sleeve Kit, 22N

Ainult telli
Hind (ilma KM-ta):
30,54 €
Hind kehtib kuni 24.12.26
EAN: 8712403581711
MPN: 7000099519
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi 3M™ 91-AH Heat Shrink Inline Splice Sleeve Kit, 22N
Bränd 3M
Kategooriad Cable End Terminals & Connectors
Päritoluriik* NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmoneeritud süsteemi kood 3917 3200 90
Mudel Kuumkahanev
Sobib .. Muul viisil
Isolatsioonimaterjali liik Plast
Ühenduse lisatarvikud Puudub
Nimipinge U0/U (Um) 0.6/1 (1.2) kV

Pakendamise üksikasjad

Pakkimistase 1 8712403581711

Muud tehnilised andmed

Halogeenivaba Yes
Juhtide arv 4
Paber ja plastikisolatsiooniga kaablite ühendamiseks No

Kirjeldus

3M™ 91-AH is a heatshrink low voltage inline joint kit for crimp connectors, designed to be used on 3-core, 4-core and 5-core non shielded, non armoured, low voltage polymeric insulated energy cables up to 0.6/1 kV according to HD603 and IEC 60502-1. RoHS compliant and halogen free. Good electrical insulation, moisture, mechanical, chemical and UV resistance.3M™ 91-AH shrink ratio is up to 4.5:1, minimum shrink temperature is 135°C, operating temperature is -55°C to +130°C. It provides excellent moisture watertight sealing, high mechanical protection, excellent electrical insulation properties and good resistance against UV-radiation, alkaline earths and chemical agents. The application incorporates electrical insulation and mechanical protection of joints for crimp connectors. 91-AH Sleeve Kit is used for indoor and outdoor, underground and submerged application. Approvals: Type tested acording DIN EN 50393, Table 3
