2V002A Sammelschienen-Modul SS-System, Klemmen, 3RE / BH00, 2 FB
Ainult telli
Hind (ilma KM-ta):
264,00 €
tk kohta
EAN: 4011617376095
MPN: 2CPX037609R9999
Karp: 1
Kaubaalus: 40
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | 2V002A Busbar und terminals 450 mm x 500 mm x 120 mm , 00 , 2 |
| Bränd | ABB |
| Kategooriad |
Mounting Сomponents
|
| Harmoneeritud süsteemi kood | 8538 1000 00 |
| Katte liik | Suletud |
| DIN liistude arv | 0 |
Pakendamise üksikasjad
| Pakkimistase 1 | 4011617376095 |
| Pakkimistase 2 | 4011617376095 |
Muud tehnilised andmed
| Laius | 500 mm |
| Kõrgus | 450 mm |
| Sügavus | 120 mm |
| Koos montaažiplaadiga | FALSE |
| Koos kattega | TRUE |
| Moodulite arv DIN liistu kohta | 0 |
| N-PE klambriga | FALSE |
| Termination point meter position | FALSE |
Allalaadimised
Kirjeldus

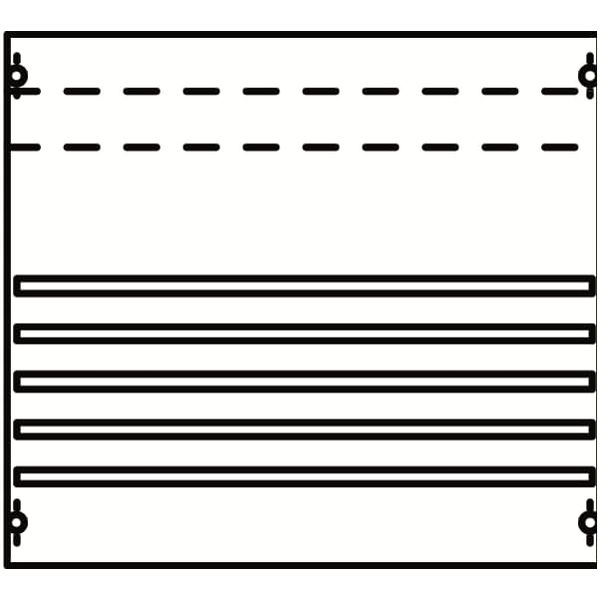

Interior fitting system, Distribution panels, mounted on EDF-Profile, for Busbar und terminals, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, with busbar system 5-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 40 mm, with 5 Cu busbars, rated current maximum 360 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.
