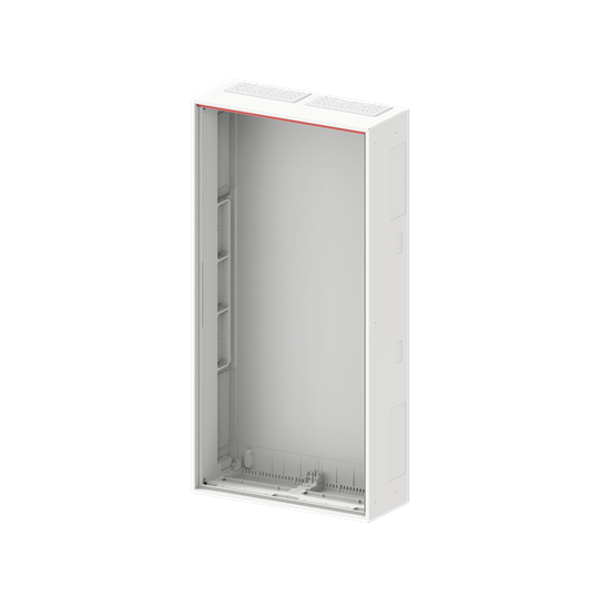

MD01 image 1

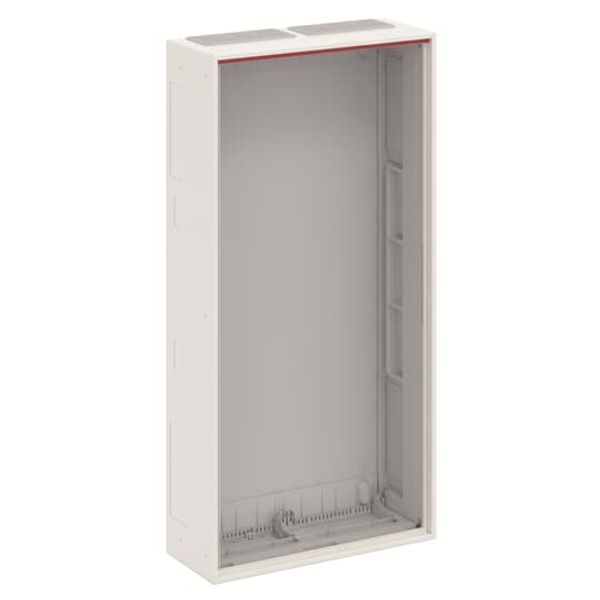

A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm image 2

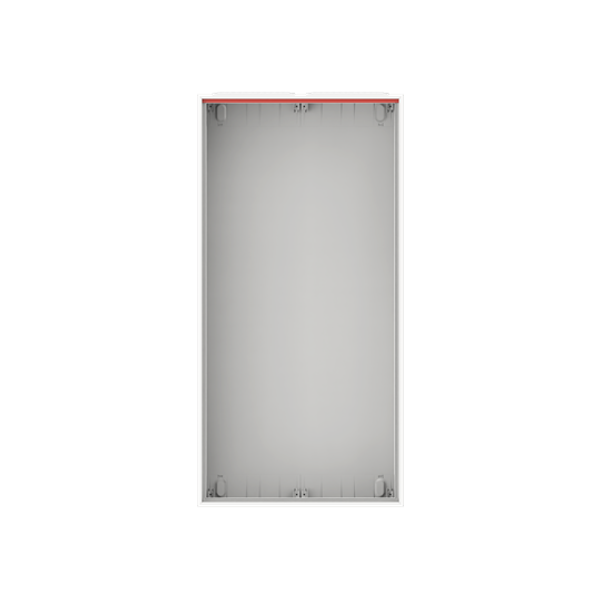

MD99 image 3

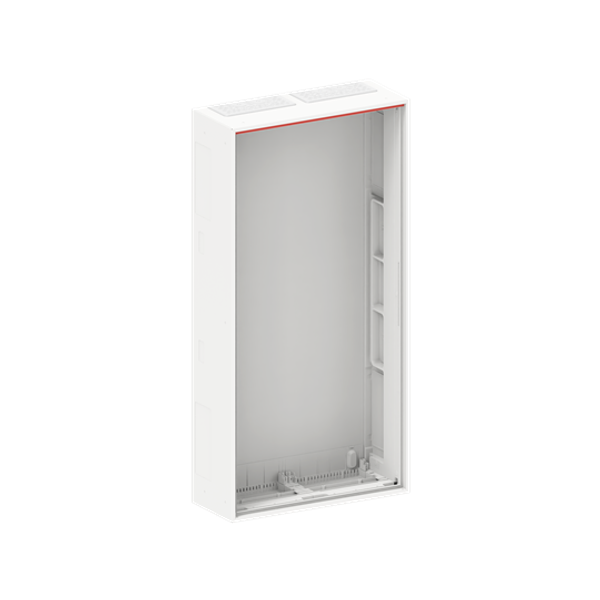

MD99 image 4

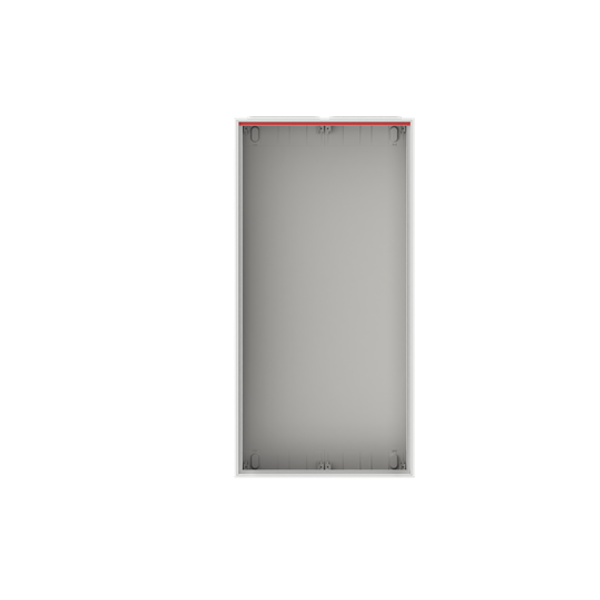

A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm image 5
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm image 6
MD01 image 7
MD99 image 8
MD99 image 9
MD01 image 10
MD99 image 11
MD99 image 12
MD99 image 13
MD99 image 14
MD01 image 15
MD99 image 16
MD01 image 17
MD99 image 18
MD99 image 19
MD99 image 20
MD99 image 21
MD99 image 22
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm image 23
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm image 24
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm image 25
MD01 thumbnail 1
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm thumbnail 2
MD99 thumbnail 3
MD99 thumbnail 4
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm thumbnail 5
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm thumbnail 6
MD01 thumbnail 7
MD99 thumbnail 8
MD99 thumbnail 9
MD01 thumbnail 10
MD99 thumbnail 11
MD99 thumbnail 12
MD99 thumbnail 13
MD99 thumbnail 14
MD01 thumbnail 15
MD99 thumbnail 16
MD01 thumbnail 17
MD99 thumbnail 18
MD99 thumbnail 19
MD99 thumbnail 20
MD99 thumbnail 21
MD99 thumbnail 22
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm thumbnail 23
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm thumbnail 24
A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm thumbnail 25
ABB

A17B Wall Cab.1PW7R basic w/o door

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
234,78 € tk kohta
Hind kehtib kuni 31.12.30
EAN: 4011617520849
MPN: 2CPX052084R9999
Pakend: 1
Kaubaalus: 9
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi A27B ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 168 SU, Isolated (Class II), IP00, Field Width: 2, Rows: 7, 1100 mm x 550 mm x 215 mm
Bränd ABB
Kategooriad Cabinet Enclosures
Harmoneeritud süsteemi kood 8538 1000 00
Ahela terviklikkus Puudub
Löögikindlus IK07
Kaitseaste (IP) Muul viisil

Pakendamise üksikasjad

Pakkimistase 1 4011617520849
Pakkimistase 2 4011617520849

Muud tehnilised andmed

Paigaldusviis Pinnapealne
Kaitseklass II
Värvus Valge
Laius 550 mm
Kõrgus 1100 mm
Sügavus 215 mm
RAL-number 9016
Koos montaažiplaadiga FALSE
Pinnatöötlus Pulbervärvitud
Sisseehitussügavus 190 mm
Ridade arv 7
Katte liik Puudub
Paigaldustoru sisendite arv 102
Laiendamine on võimalik TRUE
Sisemine sügavus 207 mm
Kere materjal Terasplaat/plastik
Laius mooduli arvudes 24
Sobib väliskasutuseks FALSE
Moodulite arv 168
Ukse liik Puudub
Läbipaistev kate/uks FALSE
Lukuga FALSE
Sobib piksekaitseks TRUE
Tunnusvool (In) 250 A
Kapi ümbrise paksus 0,9 mm
Ukse või katteplaadi paksus 0,9 mm
Katte kuju Väljalõikega
Ääreplaatide avade arv 2
Kaitseaste (NEMA) Muul viisil
Cover with overpressure release FALSE

Allalaadimised

Muu RoHS deklaratsioon REACH süvalink CE DOC deklaratsioon (CE vastavusdeklaratsioon) Toote andmeleht

Kirjeldus

Wall-mounting cabinet, empty cabinet, for the internal use, without door, class of protection II (double insulated), degree of protection IP00, IK code 7, rated current 250 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, without door, door out of sheet steel, cable entry on top via membrane flange mounted, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1100 x 550 x 215, Grid unit 7 GU, panel width 2, Space units 168, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame
