25G RJ45 field plug pro
Ainult telli
Hind (ilma KM-ta):
12,04 €
EAN: 4251394618555
MPN: 130G405032-E
Pakend: 1
Karp: 10
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | 25G RJ45 field plug pro |
| Bränd | METZ CONNECT |
| Kategooriad |
Telecommunication Distribution Components
|
| Päritoluriik* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 8536 6990 00 |
| Mudel | Pistik |
| Varjestatud | Yes |
| Pistmiku (konnektori) liik | RJ45 8 (8) |
Pakendamise üksikasjad
| Pakkimistase 1 | 4251394618555 |
| Pakkimistase 2 | 4251394618555 |
Muud tehnilised andmed
| Värvus | Hõbedane |
| Ühenduse liik | Isolatsiooni läbiv liitmik |
| Kategooria | Muul viisil |
| Sobib ümarkaablile | Yes |
| Sobib lapikkaablile | No |
| Sobib (litz) kiudjuhtmetele | Yes |
| Sobib massiivsoonele | Yes |
| AWG-suurus | 22-27 |
| Läbipaistev | No |
| Vajalik on eritööriist | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
Kirjeldus

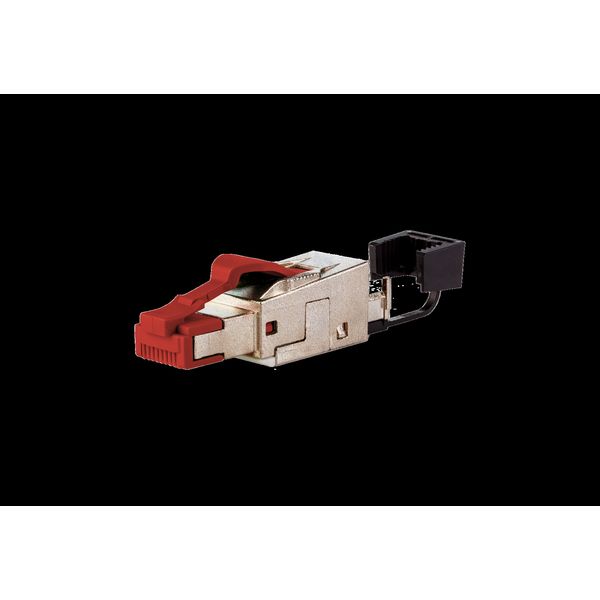

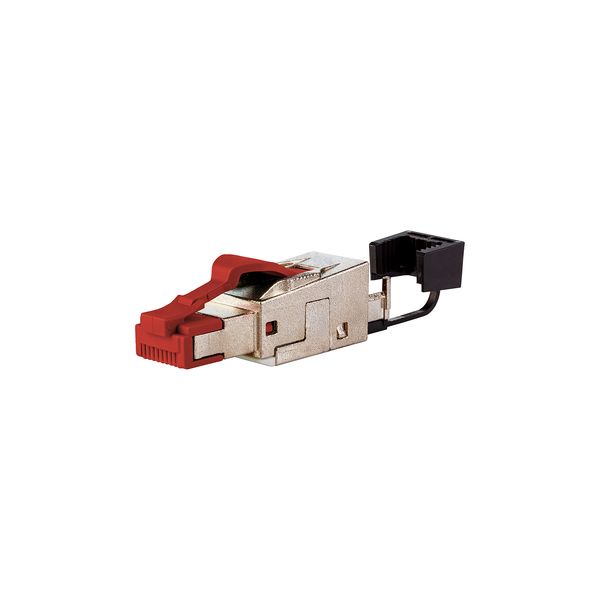

RJ45 plug to be assembled in the field for 25 Gbit up to 1250 MHz, fully shielded and multi-port capable, straight (180°) cable feed, easy assembly - connection without special tools, wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.43 to 0.76 mm, wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.409 to 0.64 mm, transmission characteristics according to ISO/IEC 11801 (up to 1250 MHz), suitable for 25GBASE-T 25 GBit Ethernet (IEEE 802.3bq), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, degree of protection IP20, for cable jacket diameter from 5.5 to 10.5 mm, zinc die-cast housing for industrial use consists of only 2 parts, strain relief by latching clip directly on the stuffer cap, protected locking hook, reconnectable
