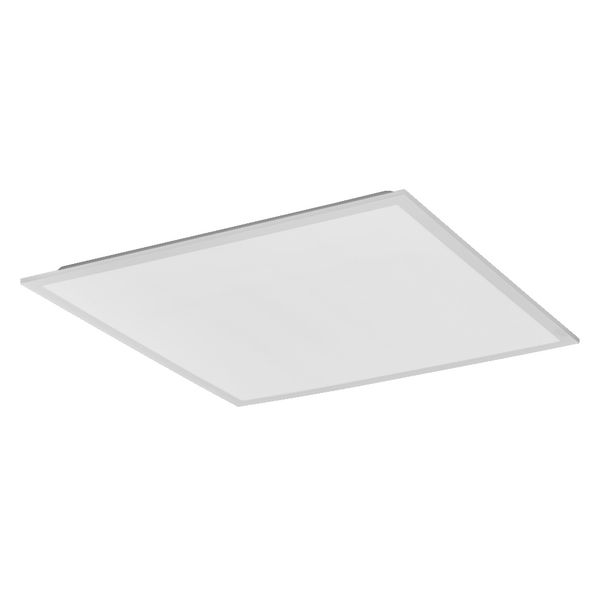

Essentials Panel 60x60cm 50W CCT UGR19
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
Split box: 10,00 €
EAN: 4058075845213
MPN: 4058075845213
Package: 1
Box: 4
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Essentials Panel 60x60cm 50W CCT UGR19 |
| Brand | LEDVANCE |
| Categories |
Wall and ceiling luminaires
Surface mounting lamps |
| Country of origin | CN |
| Harmonized System Code | 9405 1190 00 |
| Width | 595 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 595 mm |
| Height/depth | 32 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 3000 K |
| Max. system power | 50 W |
| Rated luminous flux according to IEC 62722-2-1 | 4500 lm |
| Luminaire efficacy | 90 lm/W |
Packing details
| Packing level 1 | 4058075845213 |
| Packing level 2 | 4058075845220 |
Other Technical data
| Protection class | II |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | Matt |
| Type of control gear | Electronic ballast |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 2 |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 0 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Nominal current | 235 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | Yes |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | -10-50 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 19 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker B16 | 13 |
| Dimming DALI-2 | No |
| Colour temperature adjustable | Positions |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | No |
| Power factor | 0.9 |
Downloads
Description
Essential Panels for basic user purposes. Product features: Wall and ceiling luminaire. Recess panel can be used as a surface panel when frame set is bought seperatly. Product benefits: Homogenous light distribution. Easy and quick installation. 2 in 1 Design: recessed mounting or surface mounting with add-on kit. Surface mounting frame for 60 x 60 Panel for Screwless mounting. Areas of application: Living areas. Equipment / Accessories: Driver included. For recessed mounting (surface or pendant mouting requires mounting accessories). Safety advice: All electrical connections must be made by a qualified person.. Caution, risk of electric shock.. The luminaires are not suitable for covering with thermally insulated material.. Check wall-ceiling for suitability. If uncertain, seek professional advice.. Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor..
