Equipotential bonding bar with cover 5x 2.5-25mm² 3x16-95mm² 1x Fl 30x

Name: Equipotential bonding bar with cover 5x 2.5-25mm² 3x16-95mm² 1x Fl 30x
Brand: Dehn
Price: 28.580 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

28,58 €

This price is valid until 24.12.25

EAN: 4013364027817

MPN: 563020

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Equipotential bonding bar with cover 5x 2.5-25mm² 3x16-95mm² 1x Fl 30x
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Model	With covering cap
Construction type	Surface mounting modular
Number of connections flat conductor 30 mm	1
Number of connections conductor to 25 mm² fixed	5
Number of connections conductor to 95 mm² fixed	3
Surface of the clamp	Galvanic/electrolytic zinc plated
Surface of the contact rail	Galvanic tinned
Material of clamp	Steel
Material of contact rail	Brass

Packing details

Packing level 1

4013364027817, 4013364027817

Other Technical data

Width	65 mm
Height	60 mm
Length	200 mm

Downloads

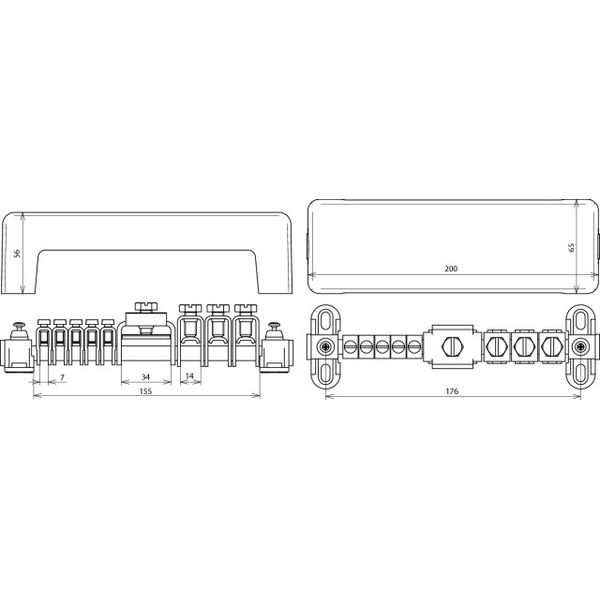

Product data sheet Dimensioned drawing Deep link REACH

Description

Equipotential bonding busbars according to EN 62561-1 for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) (main earthing busbar) and lightning equipotential bonding according to IEC/EN 62305-3. Design B, tested according to DIN VDE 0609, terminal block St/gal Zn, grey plastic bar frames and cover (halogen-free), cover is sealable and can be labelled.
