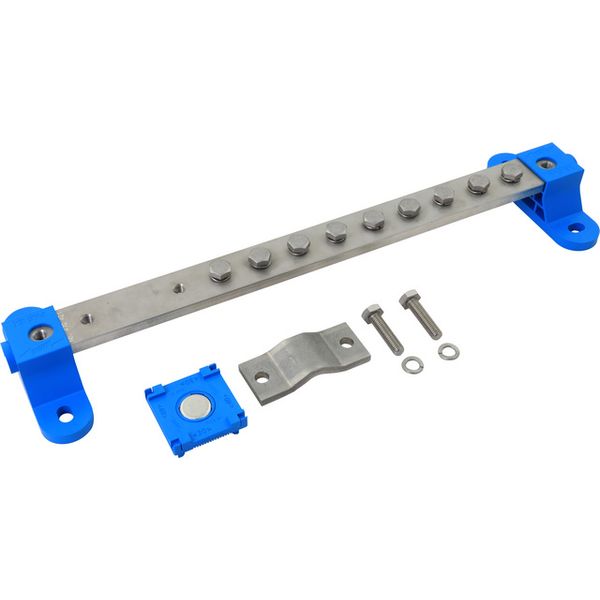

Equipotential bonding bar for Ex areas of zone 1/21, 2/22 1x flat and

Order only

Price (excl. VAT):

196,56 €

This price is valid until 28.02.26

EAN: 4013364476059

MPN: 472420

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Equipotential bonding bar for Ex areas of zone 1/21, 2/22 1x flat and
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00

Packing details

Packing level 1

4013364476059, 4013364476059

Downloads

Product data sheet Dimensioned drawing

Description

Non-sparking, Ex equipotential bonding bar for integrating metallic conductors and wires into the lightning equipotential bonding according to IEC 62305-3 as well as for protective and functional equipotential bonding according to IEC 60364-4-41/IEC 60364-5-54. For use in Ex zones 1 and 2 (gases, vapours, mists) and Ex zones 21 and 22 (dusts) explosion group IIC (safety factor 1) according to CLC 50703-2. Complies with temperature class T4 and IEC 62561-1 Lightning current carrying capability Class H (100kA). Screws secured against self-loosening according to VDE 0185-305-3 Supplement 2. Both indoor and outdoor installation permissible. To avoid whisker formation in hazardous areas, the use of tin-plated crimped cable lugs with a nickel barrier layer is recommended. The product has the following connections: 1x flat (M10 x 40 mm with spring washer) and 9x cable lug (M10 x 20 mm with spring washer).
