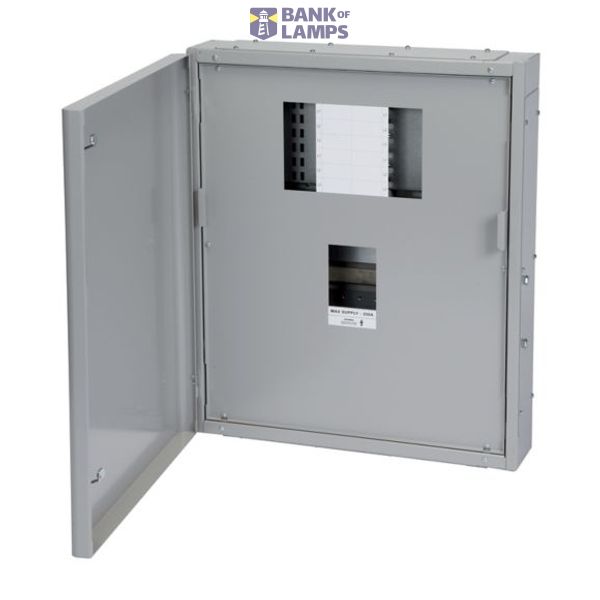

EPBN11225 Eaton Memshield 3 MCCB Panelboard LV systems Panelboards
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EPBN11225 Eaton Memshield 3 MCCB Panelboard LV systems Panelboards |
| Brand | EATON |
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000261 |
| Degree of protection (IP) | Other |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | 98 W |
| Max. permissible load of the enclosure according to IEC 62208 | 0 N |
| Max. permissible load of the door(s) according to IEC 62208 | 0 N |
Packing details
| Packing level 1 | 4015081608010 |
Other Technical data
| Colour | Grey |
| Width | 700 mm |
| Height | 185 mm |
| Depth | 1190 mm |
| RAL-number | 7004 |
| With mounting plate | No |
| Number of doors | 1 |
| Number of locks | 0 |
| Suitable for wall mounting | No |
| EMC-version | No |
| With glazed door | No |
| Connectable | No |
| Material quality | Other |
| Material | Steel |
| Impact strength | IK06 |
| Suitable for outdoor set-up | No |
| Suitable for metrical mounting | No |
| Mounting plate depth-adjustable | No |
| With ventilation door | No |
| Surface finishing | Powder coating |
| With rear door | No |
| Suitable for wall built-in | No |
| Pitched roof | No |
| Pole fastening | No |
| Degree of protection (NEMA) | Other |
| Max. permissible load of the mounting plate according to IEC 62208 | 0 N |
| Floor standing wall model | No |
| Detached | No |
| Corner model | No |
| Intermediate mounting | No |
Description
Panelboards to IEC61439-2. Form 3b Type 2 - with finger guards fitted. Busbar system KEMA certified 50kA Icc, Icw 25kA 1s. Enclosure degree of protection IP3X (wall-mounted). MCCBs to IEC60947-2. kA ratings shown are Ics=Icu at 400V ac. Switch disconnectors to IEC60947-3. Outgoing devices; NZM1 16A–125A SP & 20A–160A TP. Tin–plated busbars. Outgoing neutral terminal barriers. Can be configured for incomer device at top of panelboard. Wide range of extension boxes, metering, surge protection, and earth leakage incomer options available
