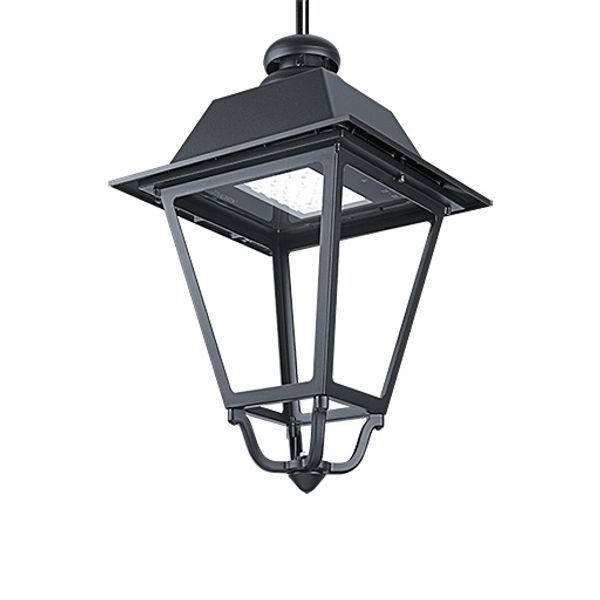

EP445 36L70-730 CD-A BPS CL2 MSU - LED Amenity lighting lantern
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 397,07 €
EAN: 9010299033185
MPN: 96631771
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | EP445 36L70-730 CD-A BPS CL2 MSU - LED Amenity lighting lantern |
| Brand | Thorn |
| Categories |
Street lighting
|
| Country of origin | IT |
| Width | 436 mm |
| Colour rendering index CRI | 70-79 |
| Length | 436 mm |
| Height/depth | 725 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000 K |
| Max. system power | 78 W |
| Rated luminous flux according to IEC 62722-2-1 | 8290 lm |
Packing details
| Packing level 1 | 9010299033185 |
Other Technical data
| Protection class | II |
| Lamp holder | None |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Colour of light | White |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | No |
Downloads
Description
A 19th Century style lantern with 36 LEDs with switchable drive current and Street & Comfort optic. Equipped with power reduction circuit, profile selected by rotary switch. Class II electrical, IP66, IK08. Body: die-cast aluminium, painted black (close to RAL9005) textured. Enclosure: 4mm thick extra clear glass. Complete with 3000K LED_x000D_
_x000D_

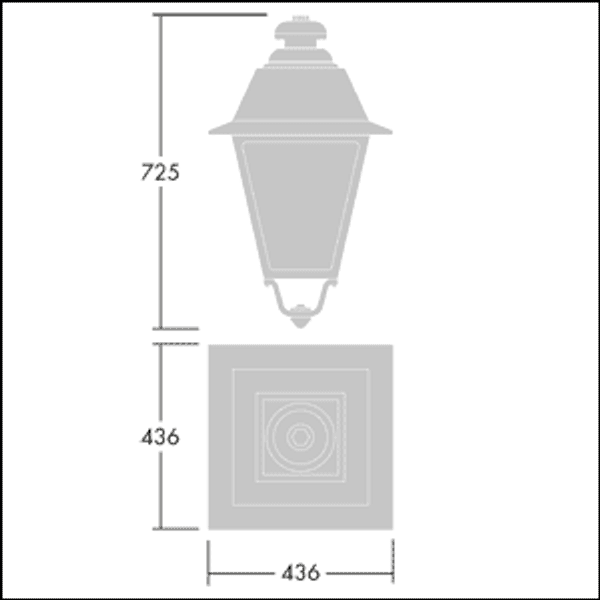

Dimensions: 436 x 436 x 725 mm_x000D_
Luminaire input power: 78 W_x000D_
Weight: 8.7 kg_x000D_
Scx: 0.19 m²
