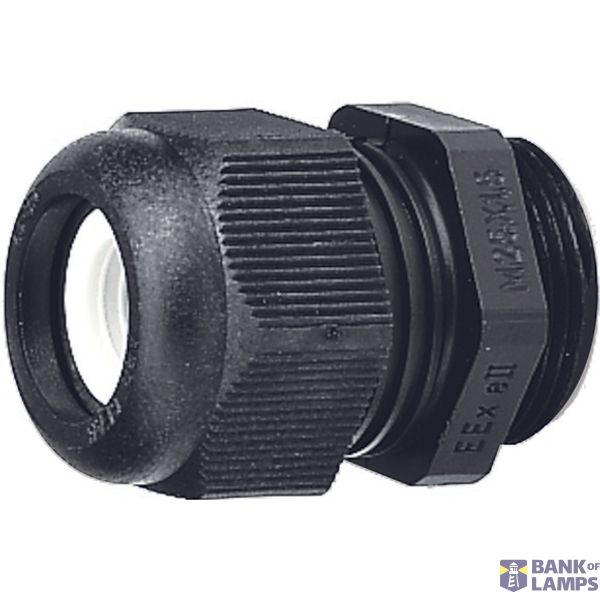

ENLARGE CABLE GLAND M50/M63X1,5 SPP5
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | ENLARGE CABLE GLAND M50/M63X1,5 SPP5 |
| Brand | EATON |
| ETIM | EC000441 |
| Model | Straight |
| Thread length | 16 mm |
| Material quality | Polyamide (PA) |
| Thread type | Metric |
| Material | Plastic |
| Hexagon angular dimension | 74.8 mm |
| Suitable for cable diameter | 29-48 mm |
| Degree of protection (IP) | IP66 |
| Nominal thread size inch/gas pipe thread | Other |
| Nominal thread size metric/PG | 50 |
Packing details
| Packing level 1 | 4250217403989 |
| Packing level 2 | 4250217403989 |
Other Technical data
| Colour | Black |
| Halogen free | Yes |
| Shock resistant | Yes |
| RAL-number | 9.005 |
| Surface protection | Untreated |
| Bend radius protection/trumpet flare | No |
| With strain relief | No |
| Screened | No |
| EMC-version | No |
| Glass-fibre reinforced | No |
| Type of sealing | Sealing ring |
| Operating temperature | -55-70 °C |
| Pitch thread | 1.5 mm |
| Explosion-tested version | Yes |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | No |
| Separable screw gland | No |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| For armoured cable | No |
| Snapping in opening | No |
| Wrench width | 68 mm |
Description
Ex-e enlargement cable gland M50, polyamide, IP66 / IP68 - 0.1 bar, Clamping range 29 - 48 mm, Thread length 16 mm, Temp. -20 °C up to 70 °C
